Fig. 13
From: Convolutional autoencoder based condition monitoring system for unique complex technical systems

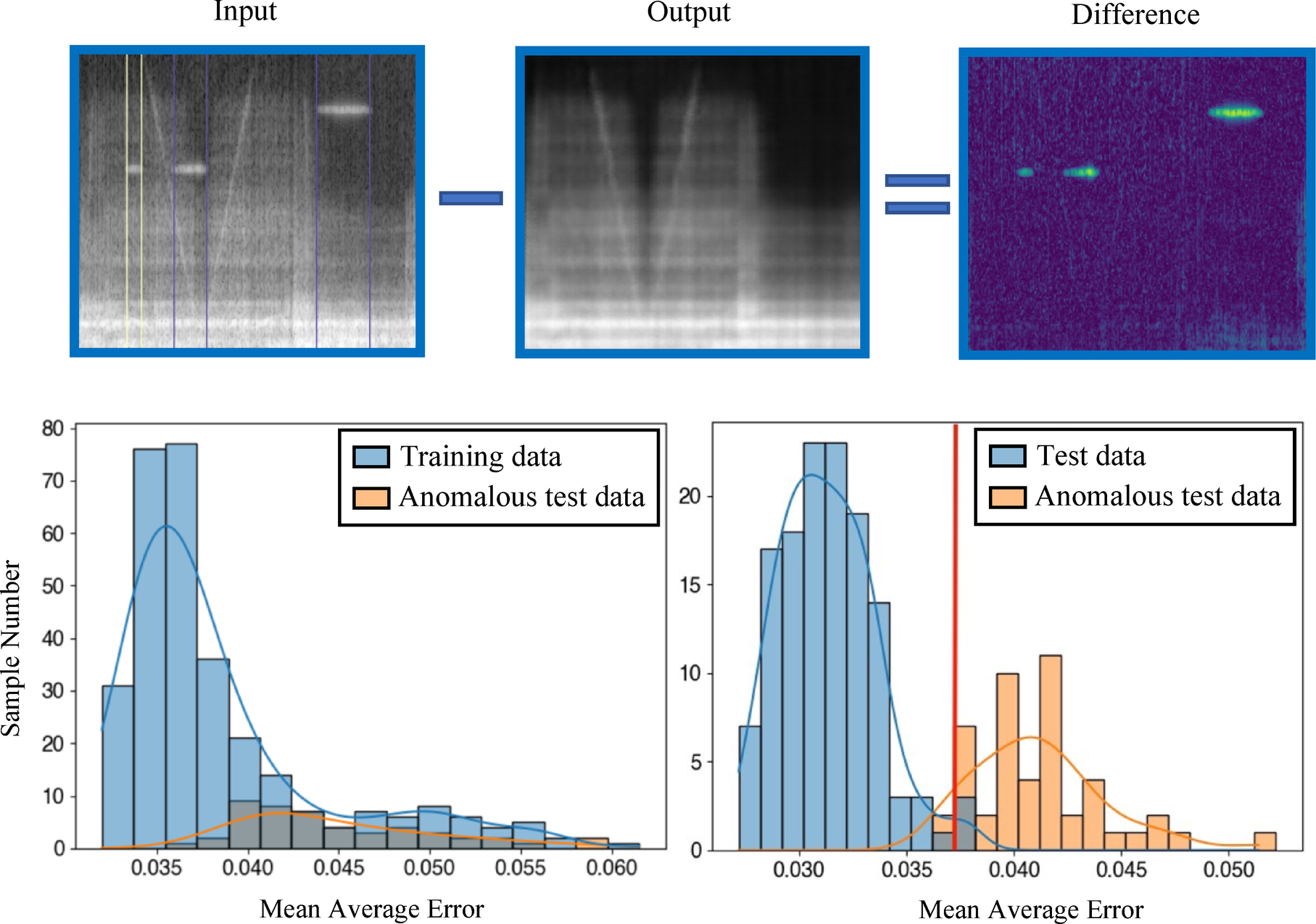

The input spectrogram (top left) and the reconstructed one (middle). The difference of both is seen in the top right of the picture. Using data augmentation and the test data as reference (down left), anomalous data improves the detection accuracy (down right).
