Fig. 8
From: Convolutional autoencoder based condition monitoring system for unique complex technical systems

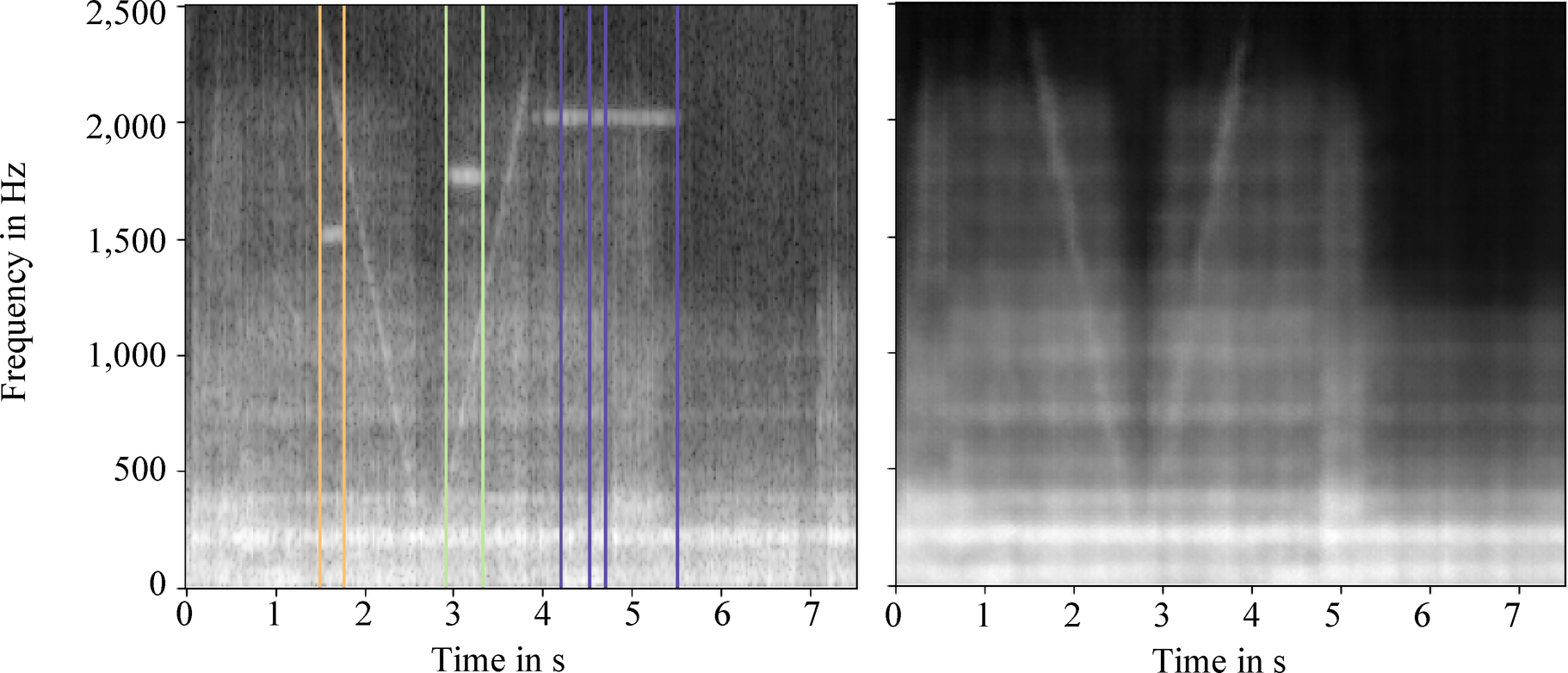

Comparison of the input spectrogram (left) and the reconstructed one (right). The four anomalies have not been reconstructed; however, the anomaly at 2000 Hz was falsely divided into two different anomalies decreasing the accuracy of the model (false-negative anomaly).
