Figure 5
From: Development of a wireless bioelectronic actuator for wound healing in a porcine model

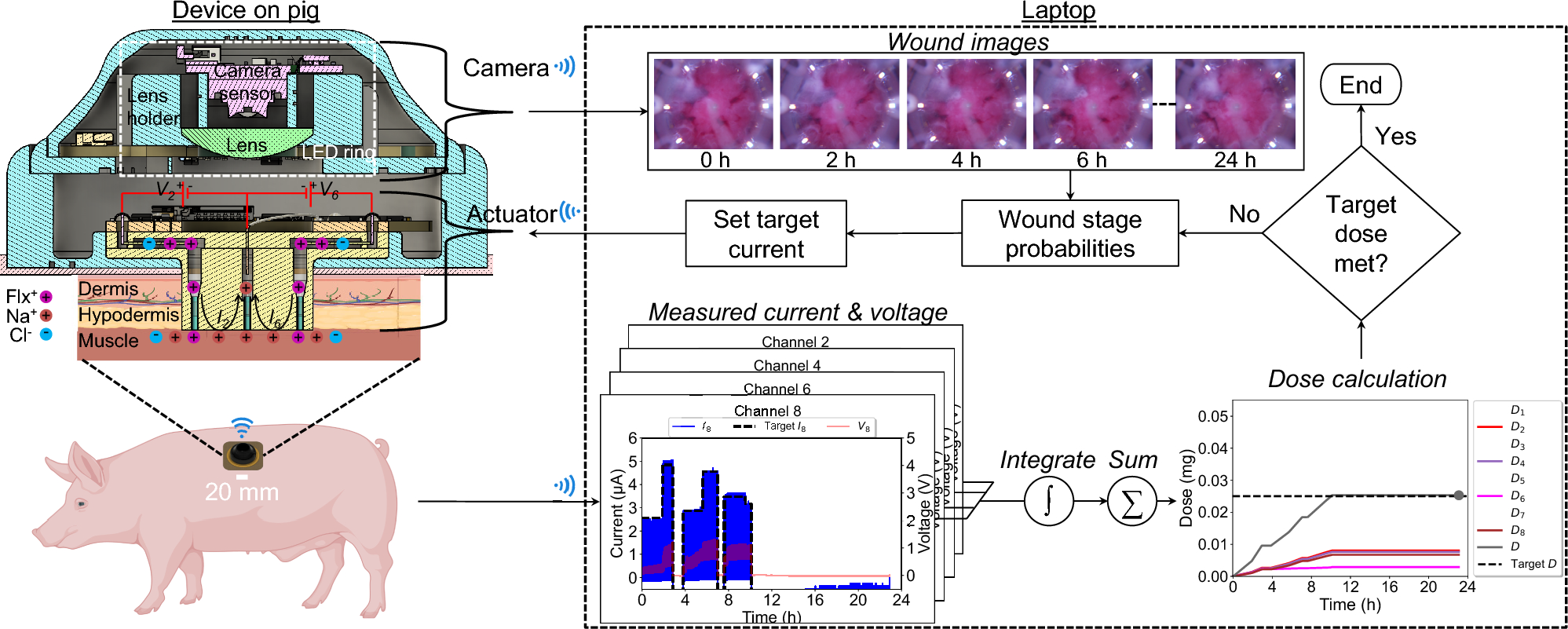

CL control of current in the wireless bioelectronic device using onboard I-DACs with pulsed current. The target currents are determined by the wound healing algorithm running on a laptop, based on wound stage probabilities calculated from wound images captured by the cameras. Created with Autodesk Fusion 2024, BioRender.com, Microsoft PowerPoint 2025, and Adobe Illustrator 2023.
