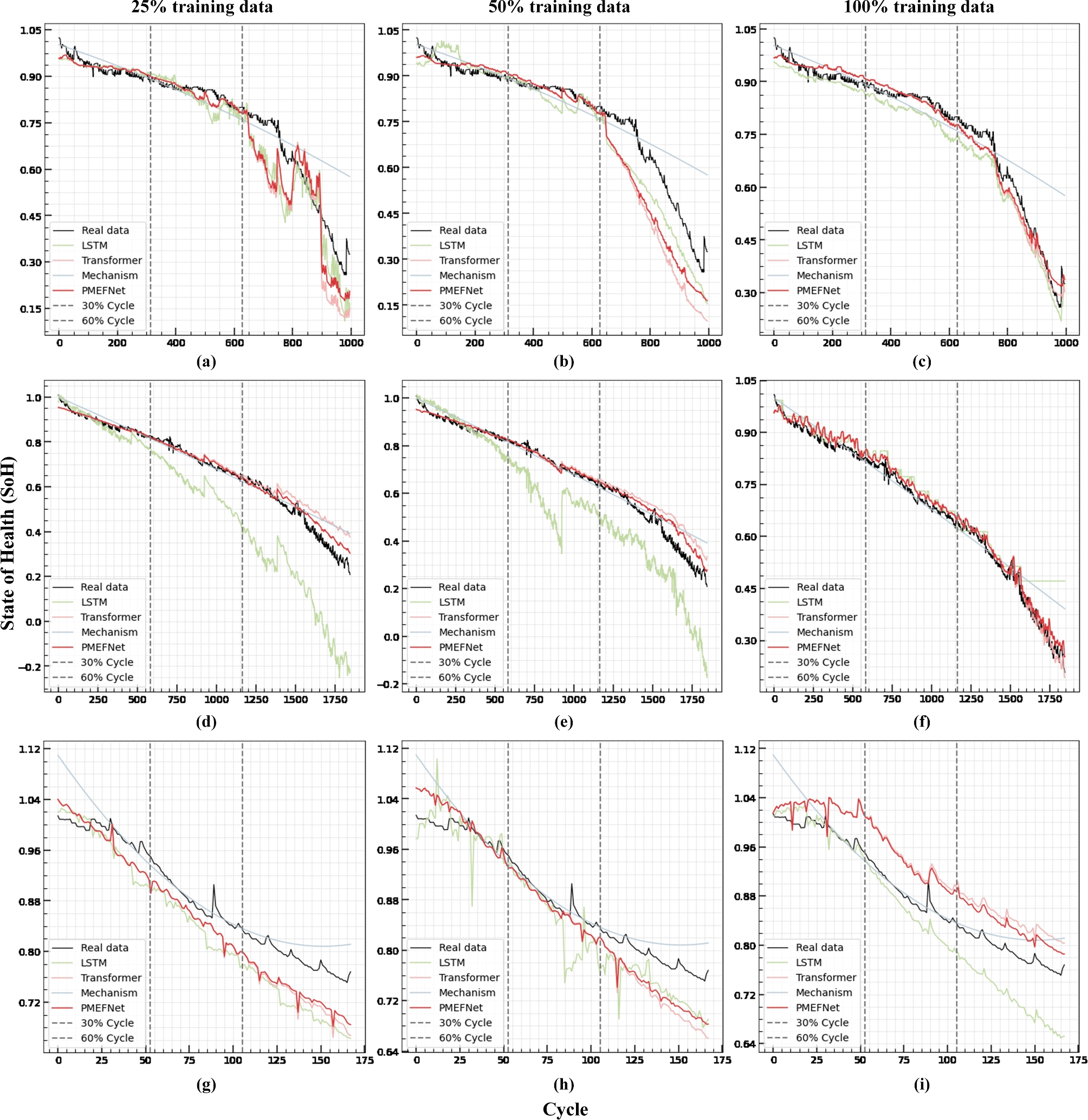

Fig. 4
From: Multi-expert fusion for state-of-health estimation of lithium-ion batteries
Comparison of different models’ trajectories of SoH estimation of CX 1350 mA, CS 1100 mA and B 1865 mA on 25%, 50% and 100% of data set for training by different models. (a) (b) (c) CS 1100 mA by different methods on 25%, 50% and 100% of data. (d) (e) (f) CX 1350 mA by different methods on 25%, 50% and 100% data. (g) (h) (i) B 1865 mA by different methods on 25%, 50% and 100% data.
