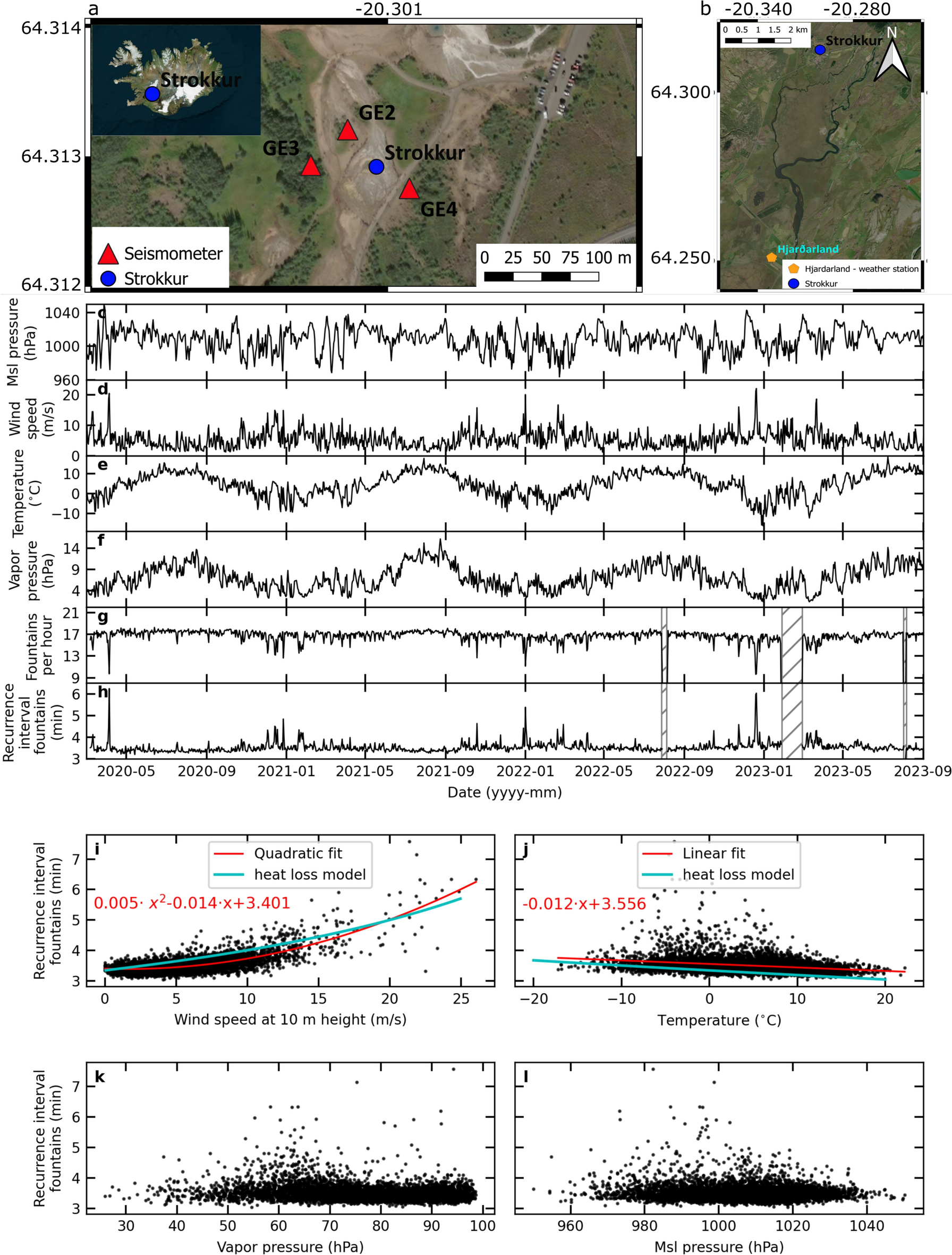

Fig. 1
From: Winds of change: meteorological influences on Strokkur’s geyser eruptions, Iceland
Wind speed affects the eruption frequency. (a) Geometry of the seismometer network around Strokkur, Iceland. The inset shows the location of Strokkur in Iceland. (b) Location of the weather station maintained by the Icelandic Meteorological Office at Hjarðarland. Map created using the Free and Open Source QGIS Desktop 3.36.3 (https://qgis.org/download/). One day average (c) msl pressure, (d) wind speed, (e) air temperature and (f) vapor pressure measured at Hjarðarland from March 2020 to September 2023. (g) Number of water fountains per hour and (h) mean recurrence interval of fountains both averaged per day. Hatched area indicates a data gap. (i-l) Correlation of mean recurrence interval in 6 h bins with (i) wind speed, (j) air temperature, (k) vapor pressure and (l) msl pressure. Best fit (red) and heat loss model (cyan) are shown.
