Fig. 11
From: A hybrid analytical and data driven framework for optimizing radially grooved wet clutch geometry

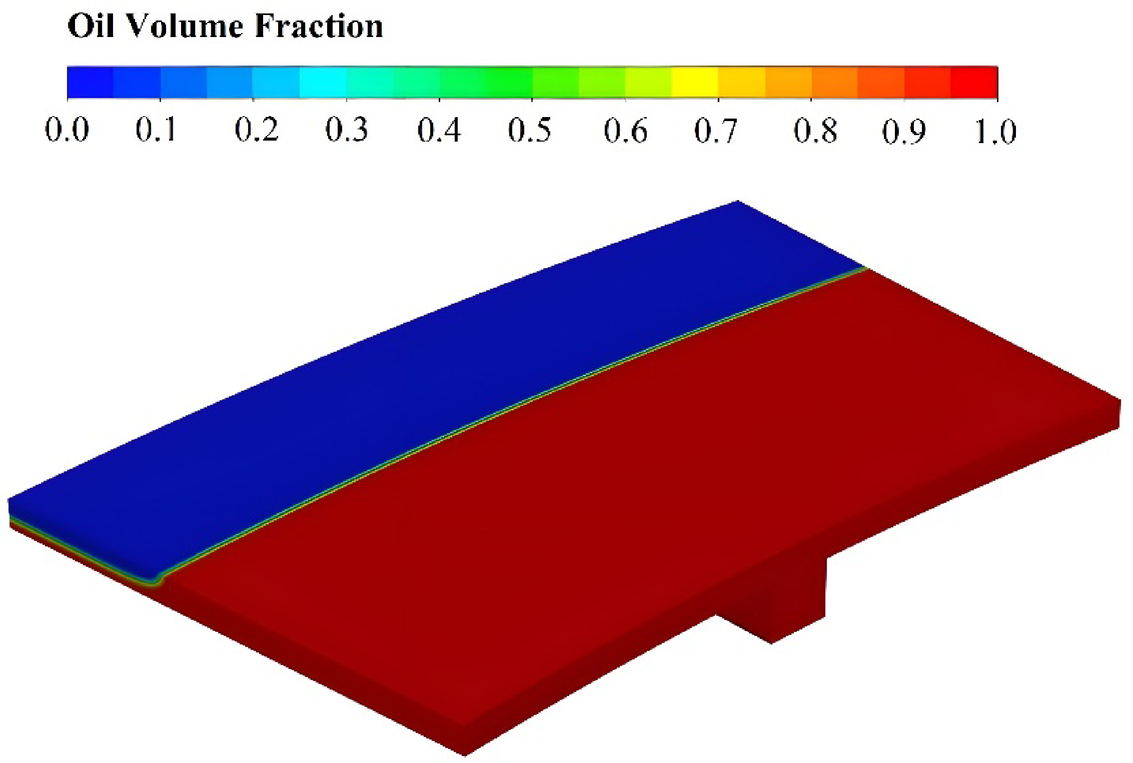

Contour of oil volume fraction through the flow domain for the case with R2 = 93.75 mm at ω = 100 rad/s.
