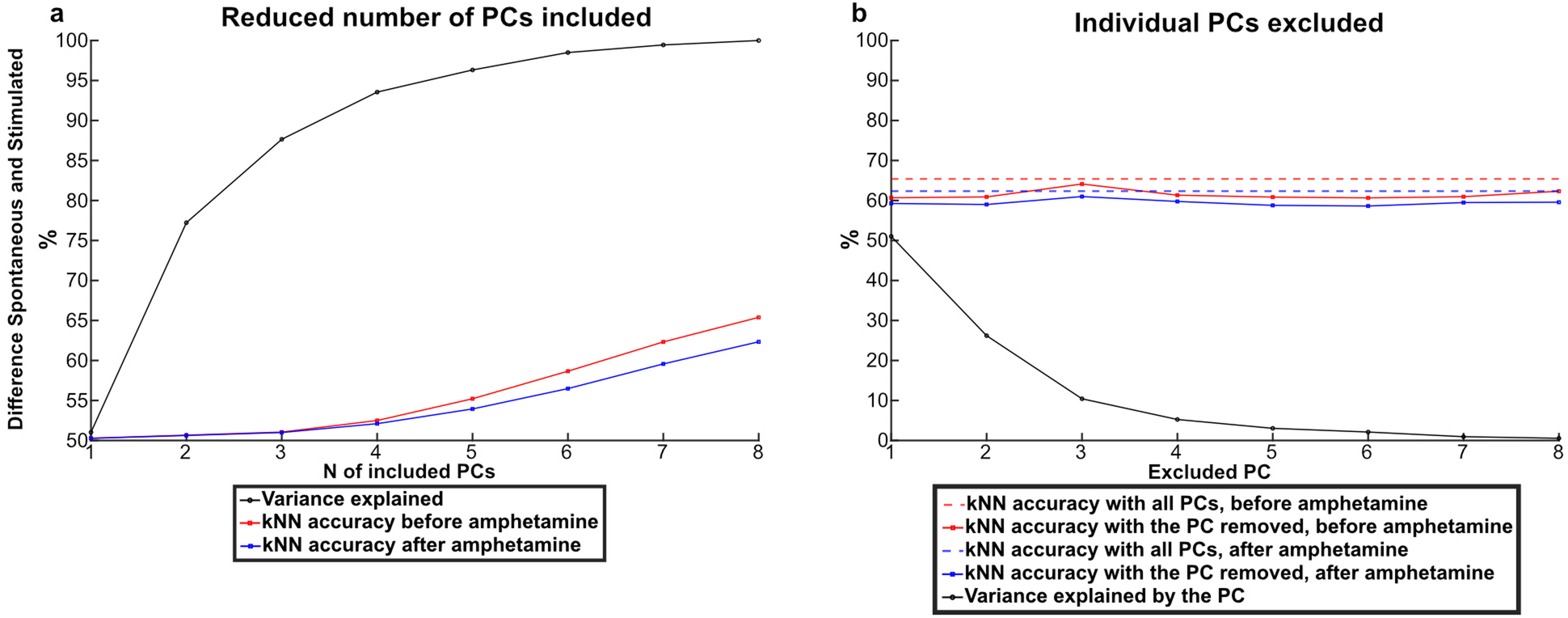

Fig. 6

Each PC contributed to the difference between spontaneous and stimulated activity, both before and after D-amphetamine. (A) The median kNN accuracy (from 98 kNNs) of the difference between the spontaneous and the stimulated activity data as a function of the number of included PCs. Red data points show the median kNN accuracy for data recorded before D-amphetamine and blue data points show the median kNN accuracy for data recorded after. The median cumulative variance explained (from seven rats) per PC for the entire data set is shown by the black data points. (B) Dashed lines indicate the median kNN accuracy (from 98 kNNs) of the difference between the spontaneous and the stimulated activity data. Solid lines and data points indicate the median kNN accuracy per each PC removed from the kNN analysis. Black data points indicate the median variance explained (from seven rats) by each PC.
