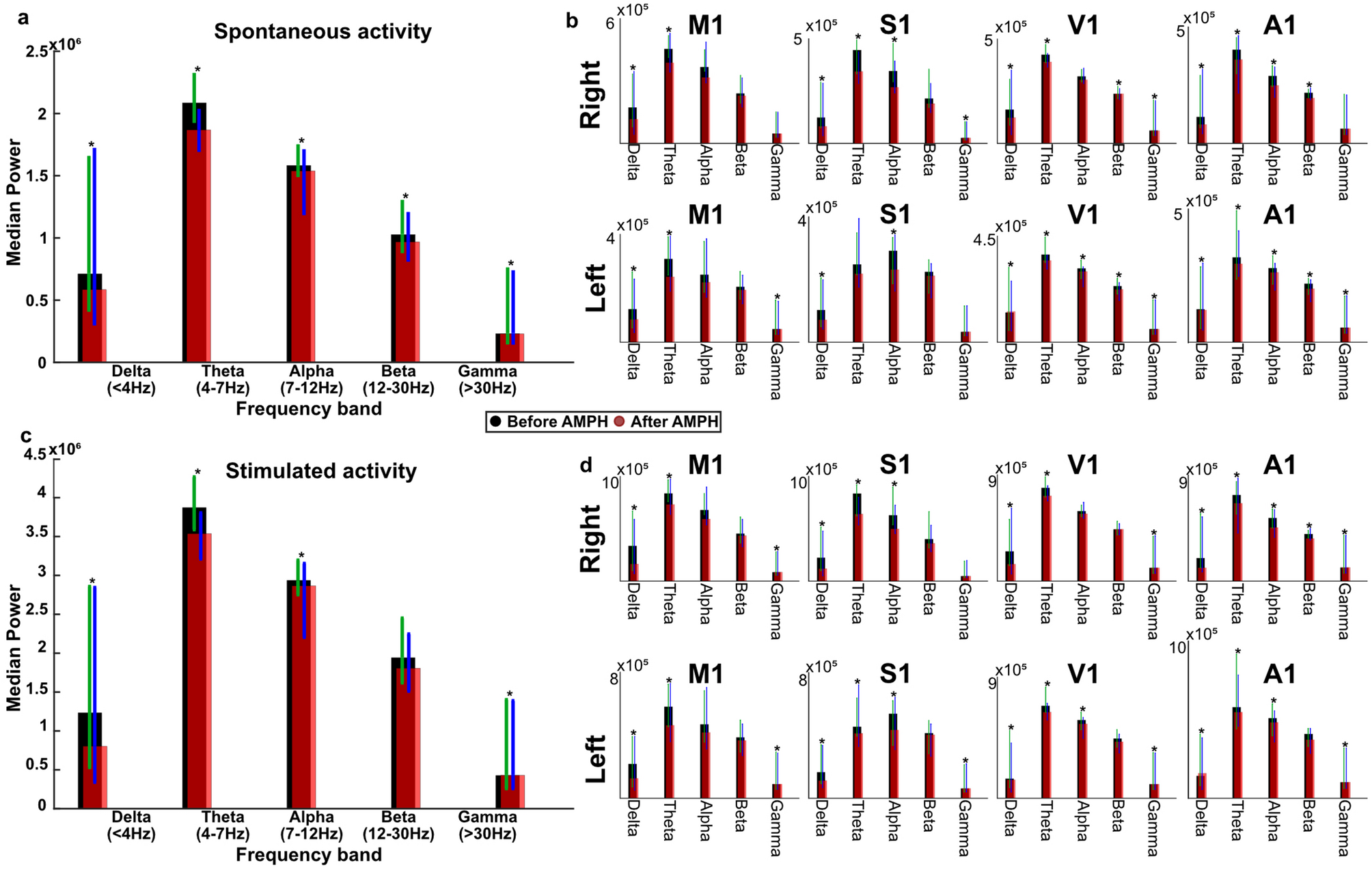

Fig. 7
From: D-amphetamine alters the dynamic ECoG activity distribution patterns in the rat neocortex
D-amphetamine reduced the power across all frequency bands. A The median power in each frequency band during all spontaneous activity for all 7 experiments, divided into before (black bars) and after (opaque, red bars) the administration of D-amphetamine. Green error bars show the upper and lower quartile before D-amphetamine administration and blue error bars show the upper and lower quartile after. Asterisks signify a significant difference in the power for the frequency band. B The median power in each frequency band for each channel, during all spontaneous activity for all 7 experiments. Black bars represent the amplitude before D-amphetamine administration and red, opaque, bars the amplitude after. Green error bars show the upper and lower quartile before D-amphetamine administration and blue error bars show the upper and lower quartile after. Asterisks signify a significant difference in the power for the frequency band. C Similar to A but for the stimulated activity. D Similar to B but for the stimulated activity.
