From: Sequence stratigraphy of the syn-rift miocene succession in the Abu Rudeis-Sidri Field, Gulf of Suez, Egypt

Fig. 13

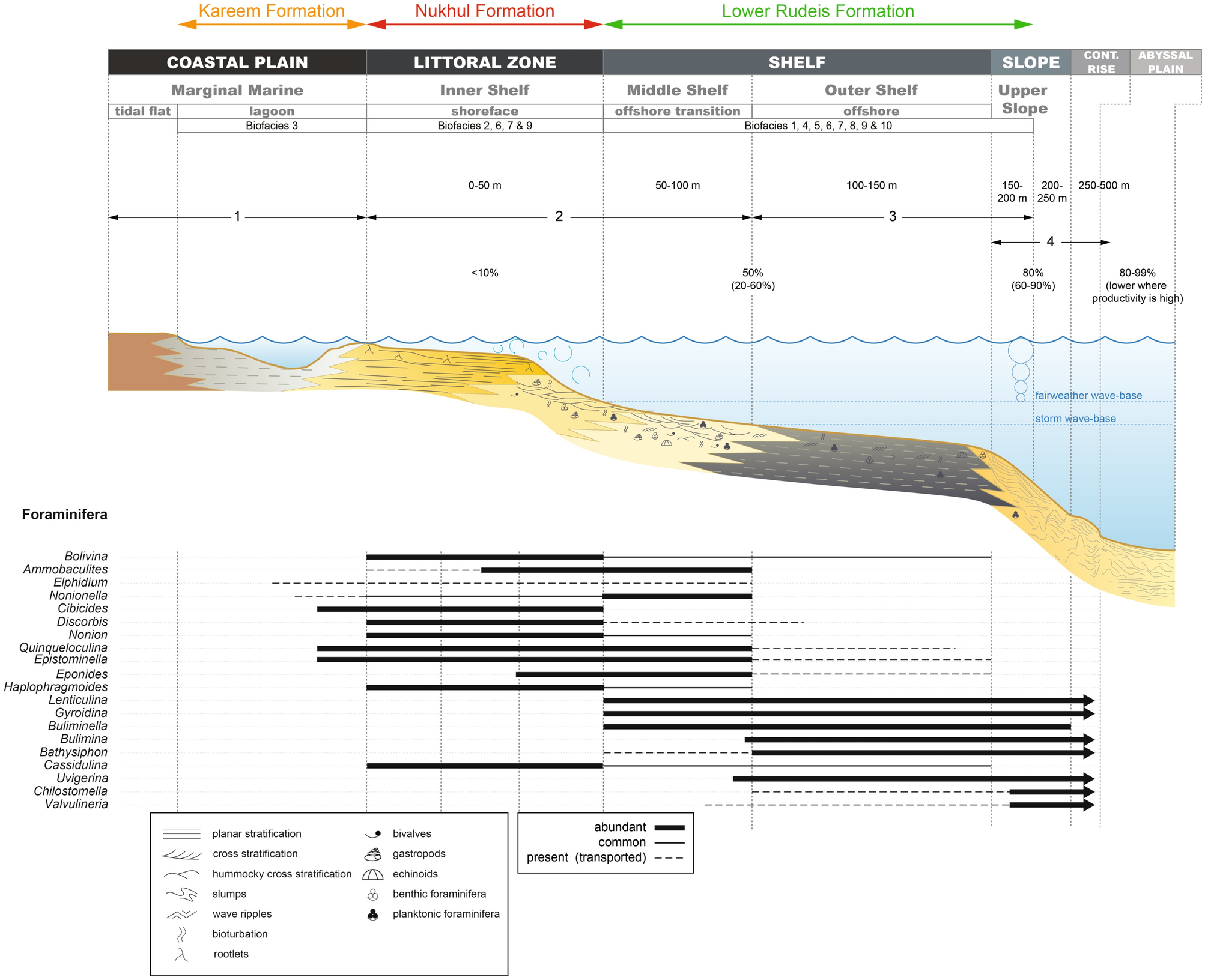

Depositional model for the Lower–Middle Miocene succession in the Abu Rudeis–Sidri Field, showing interpreted depositional environments, distribution of benthic foraminiferal biofacies, and representative benthic taxa across a generalized shelf-to-slope transect. The model illustrates three depositional phases: (1) inner shelf (Nukhul Formation), (2) middle to upper shelf/slope (Lower Rudeis Formation), and (3) restricted lagoon (Kareem Formation), placed within a paleobathymetric framework. Foraminiferal depth ranges are based on81,96 and115.
