Fig. 2

From: Sequence stratigraphy of the syn-rift miocene succession in the Abu Rudeis-Sidri Field, Gulf of Suez, Egypt

Fig. 2

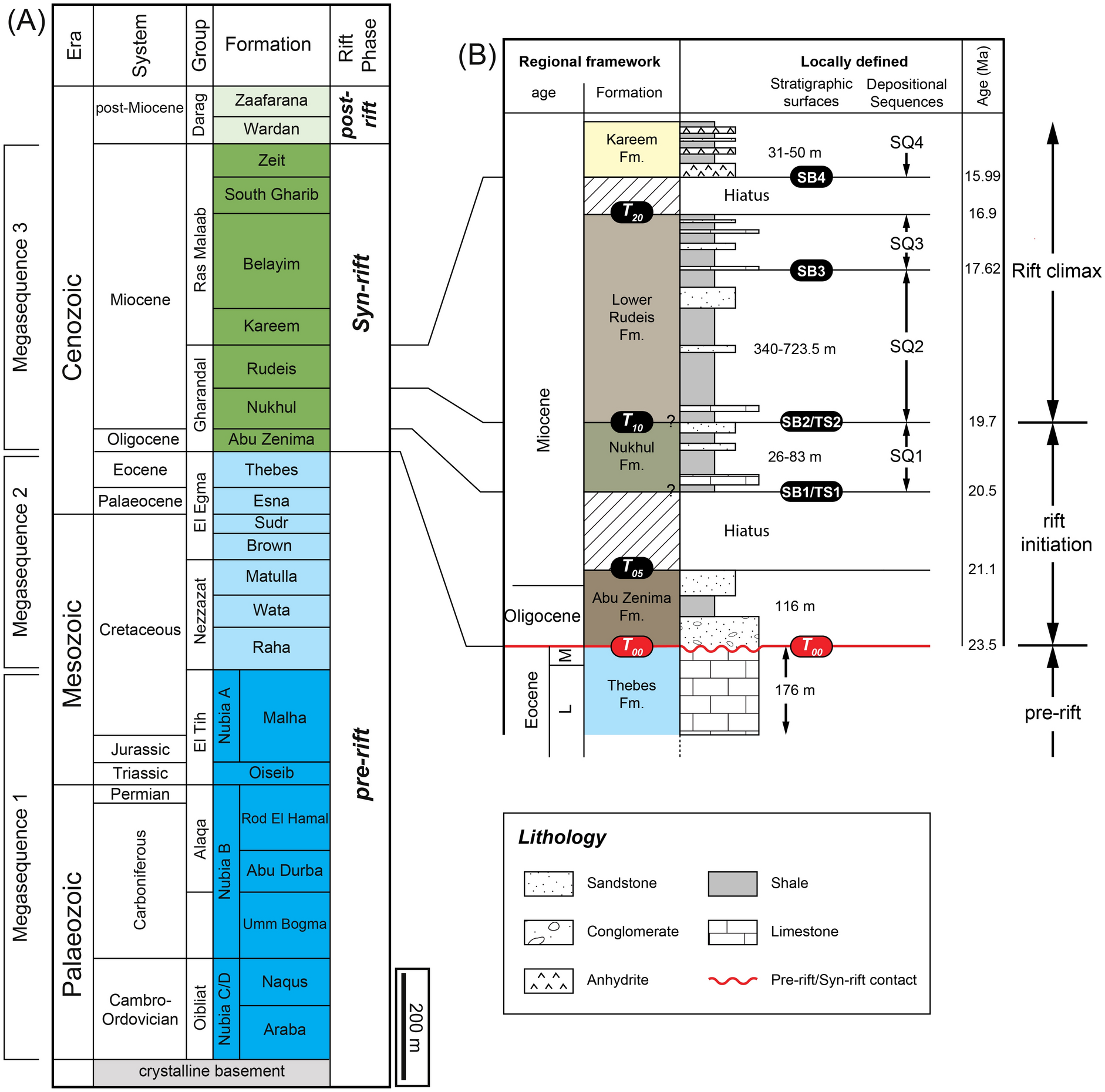

(A) Generalized stratigraphy of the Gulf of Suez Basin (after53). This study focuses on the early syn-rift Miocene sequence. (B) Local stratigraphic column showing the lithostratigraphy, key lithologies and sequence stratigraphic framework of the early Burdigalian to early Langhian succession in the Abu Rudeis–Sidri Field, east-central Gulf of Suez. Ages of key stratigraphic surfaces bounding early syn-rift units are also indicated (54 and present study).
