From: Prognostic and immunological potential of AC012236.1/hsa-miR-30d-5p CeRNA of AVEN by integrated analysis of single-cell and bulk RNA-seq in lung adenocarcinoma

Fig. 10

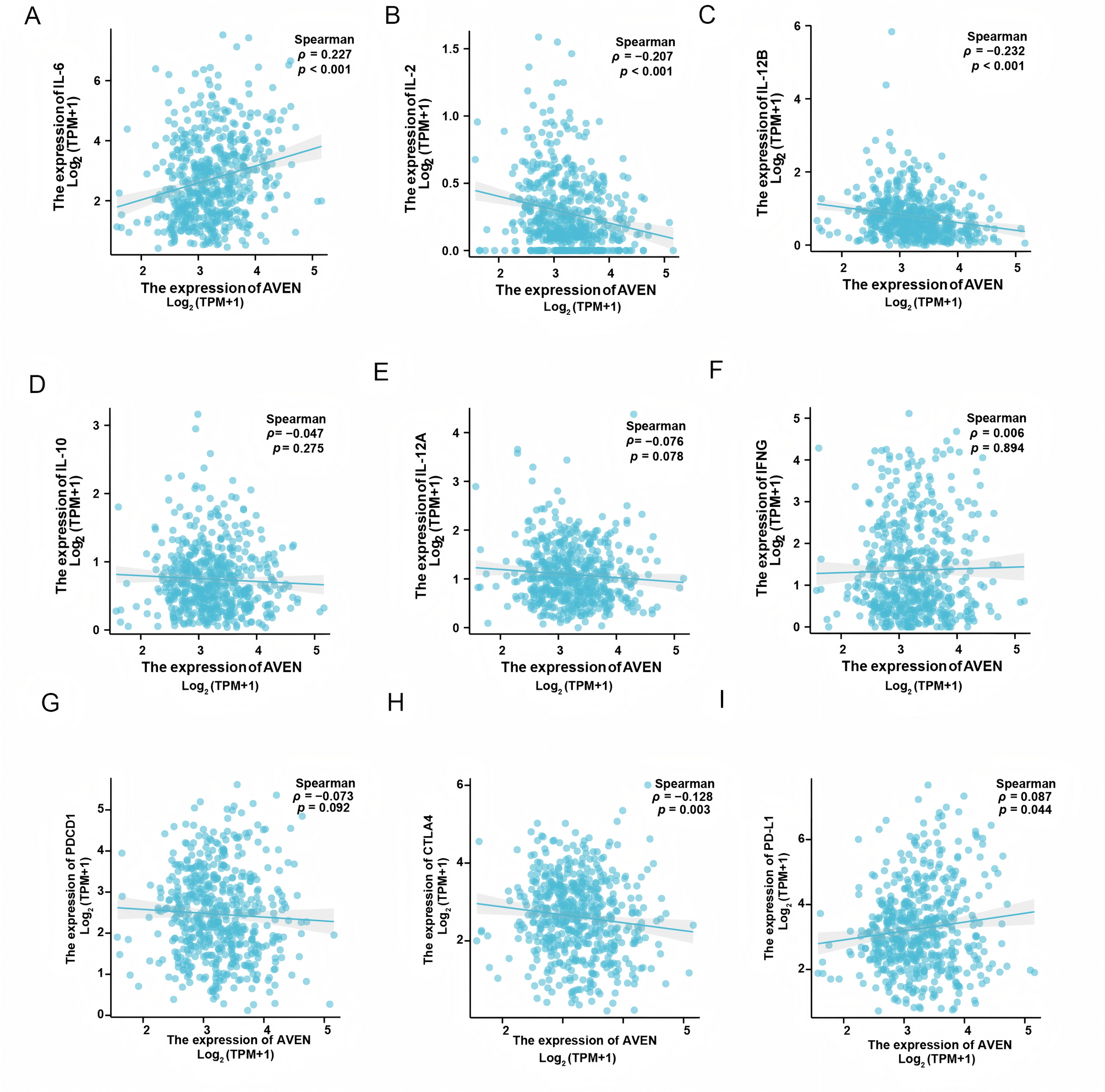

Relationship between AVEN expression and cytokines and immune checkpoints in LUAD. (A) The expression of AVEN was positively correlated with that of IL-6. (B, C) The expression of AVEN was negatively correlated with that of IL-2 and IL-12B. (D–F) There was no relationship between AVEN and IL-10, IL-12 A and IFN-γ. (G) The results showed that there was no relationship between AVEN and PDCD1. (H) The expression of AVEN was negatively correlated with that of CTLA-4. (I) The expression of AVEN was positively correlated with that of PD-L1.
