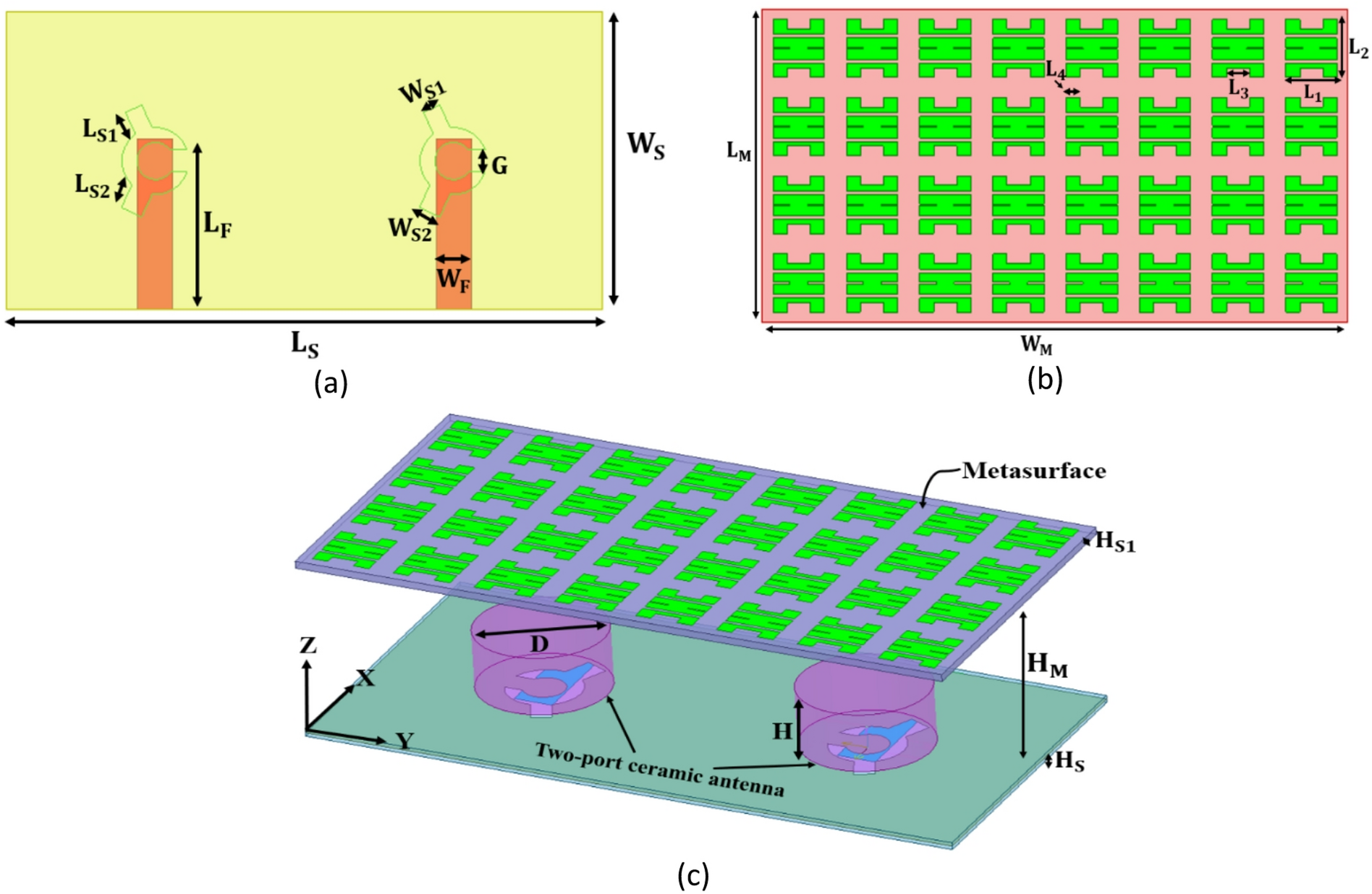

Fig. 1

Arrangement of Planned 2-port Ceramic Radiator (a) Feed Design (b) Metasurface Design (c) 3D View; L_S= 40.0; W_S=20.0; L_S1=1.0; L_S2=1.25; W_S1=1.0; W_S2=1.25; H_S=0.254; H_S1=0.254; H_M=5.0; D = 6.0;H = 3.0; W_M=40.0; L_M=20.0;L_F=10.0;W_F=2.0; L₁ = 3.0; L₂ = 4.0; L₃ = 1.0; L₄ = 0.5; G = 1.0 (in mm).
