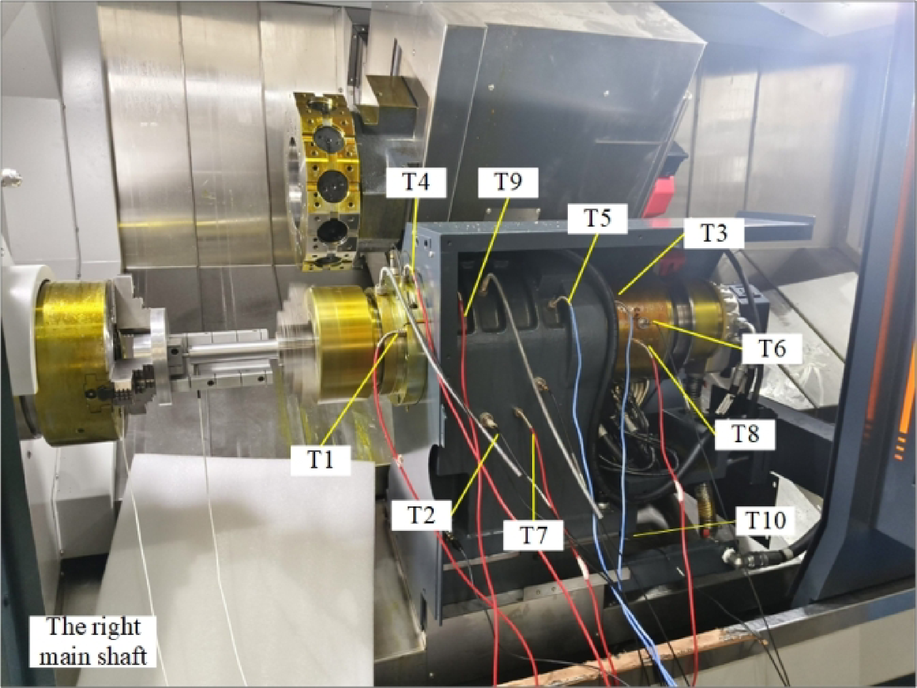

Fig. 3
The distribution of the main shaft sensors on the right side of the machine tool. T1, T3, T4, T6, T8 measure the temperature change at various points of the spindle, T2, T5, T7, T9, T10 measure the temperature change throughout the headstock, and T11 is the ambient temperature.
