Fig. 4

From: Isolation and characterization of two novel phages with lytic activity against multidrug-resistant Acinetobacter baumannii strains: potential for phage therapy

Fig. 4

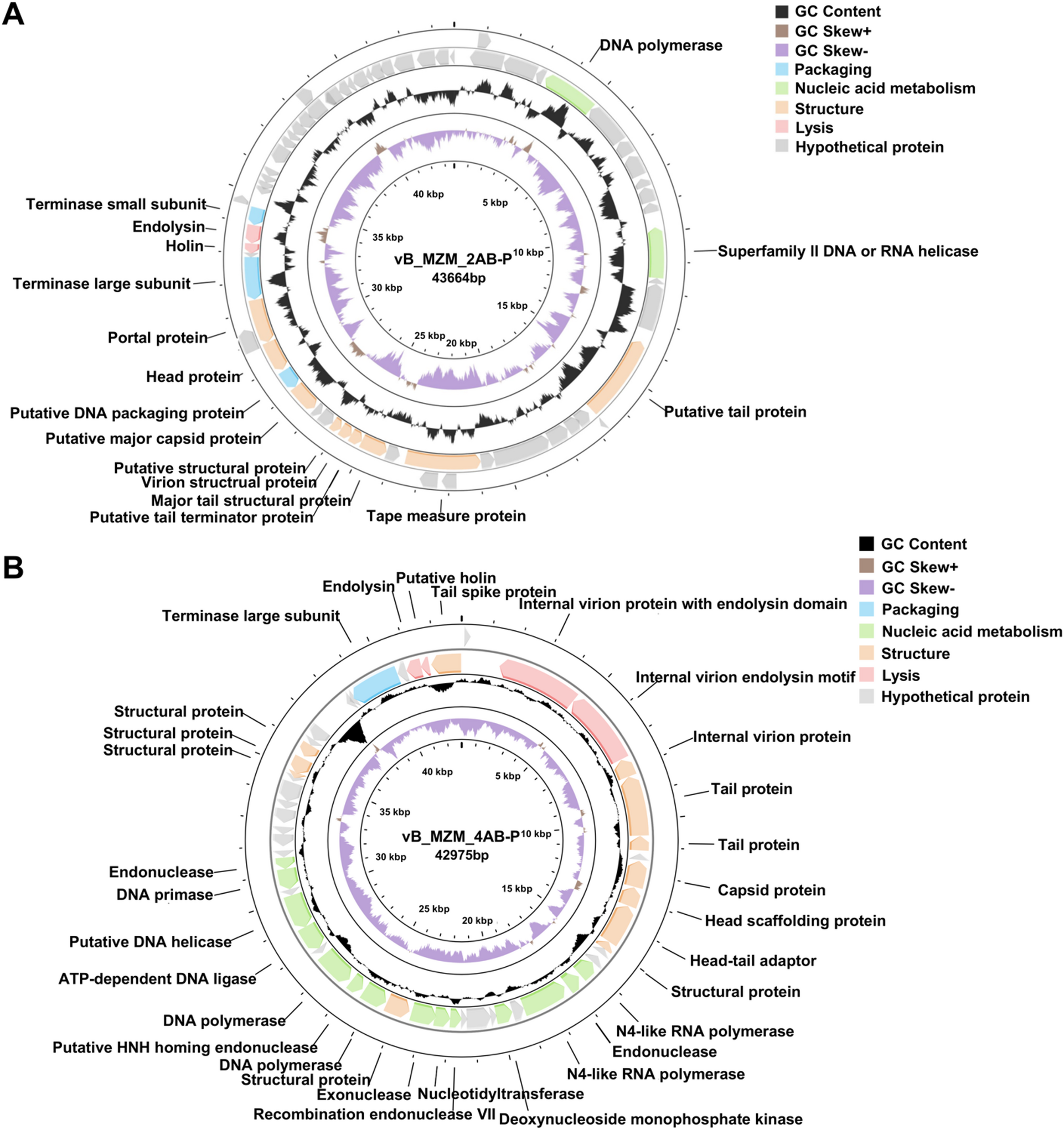

Genomic structural analysis of phages vB_MZM_2AB-P and vB_MZM_4AB-P. Schematic representation of the genome structure of phage vB_MZM_2AB-P (A) and vB_MZM_4AB-P (B). Different genetic modules are color-coded as follows: packaging gene module (blue), structural gene module (orange), cell lysis-related gene module (pink), and nucleic acid metabolism-related gene module (green). Genes of unknown function are represented in gray. GC skew is indicated in purple for leading strand gene modules and in brown for lagging strand gene modules. The detailed genomic organization of both phages is shown, with key functional regions and gene orientations highlighted.
