From: Isolation and characterization of two novel phages with lytic activity against multidrug-resistant Acinetobacter baumannii strains: potential for phage therapy

Fig. 7

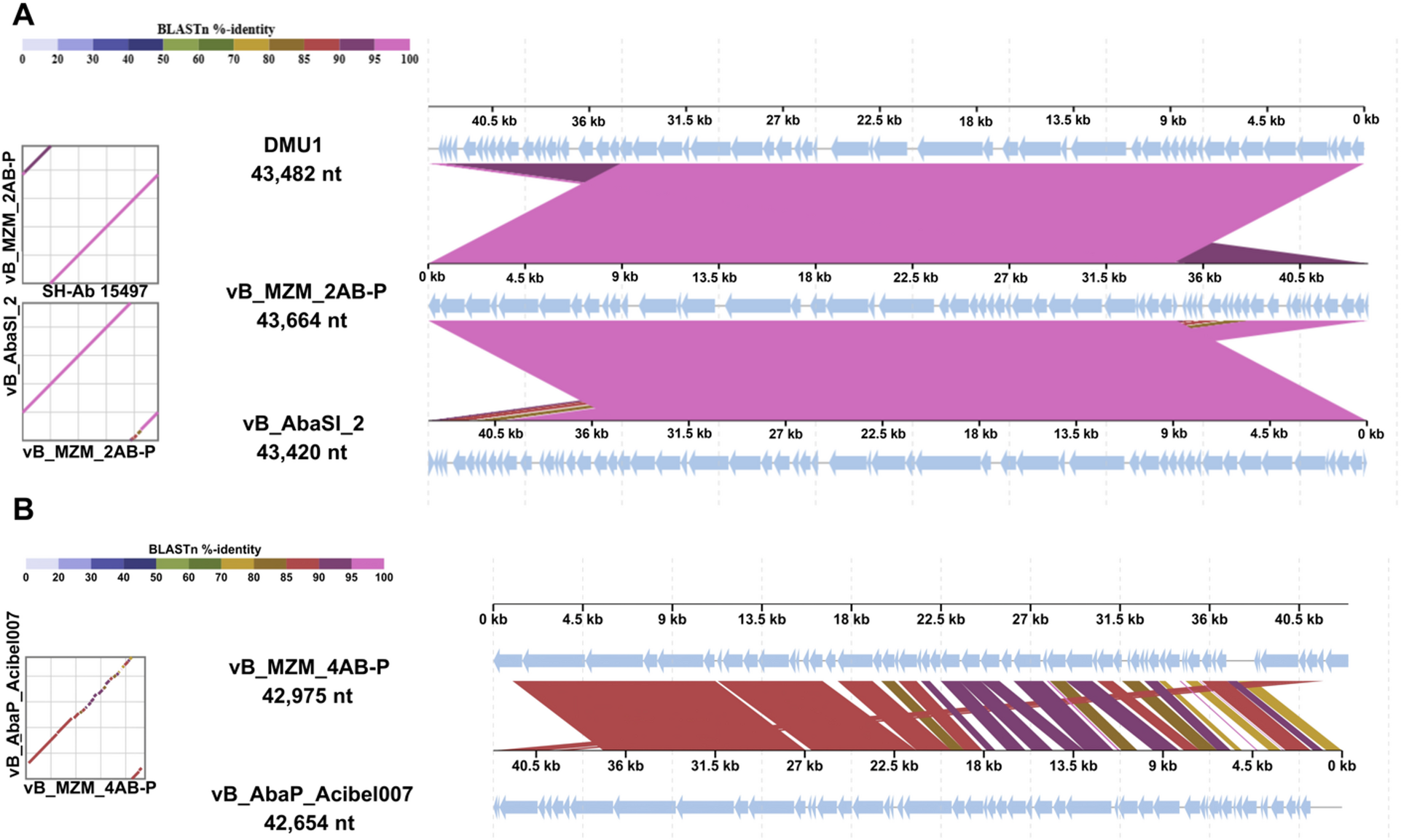

Collinearity analysis of phage genomes. (A) Genome collinearity analysis of phage vB_MZM_2AB-P with Acinetobacter phage SH-Ab15497 and DMU1. (B) Genome collinearity analysis of phage vB_MZM_4AB-P with Acinetobacter phage vB_AbaP_Acibel007. Results were generated using DiGAlign software. The color gradient from light purple to light reddish-purple indicates the gradual increase in BLASTn similarity from 0.00% to 100.00%. Reverse connecting lines represent genomic segment rearrangements. Arrow directions indicate the orientation of genomic sequences or genes, illustrating the relationship between different regions of the genome. The square diagram on the left corresponds to the arrows and lines in the collinearity plot on the right, showing the comparison and similarity between different genomes. The collinearity of phage genomes is displayed, showing sequence alignment and genomic rearrangements for comparative analysis.
