From: Sequence division and coal facies research methods of the deep No. 8 coal seam in the Daning-Jixian Block, eastern margin of Ordos basin

Fig. 8The alt text for this image may have been generated using AI.

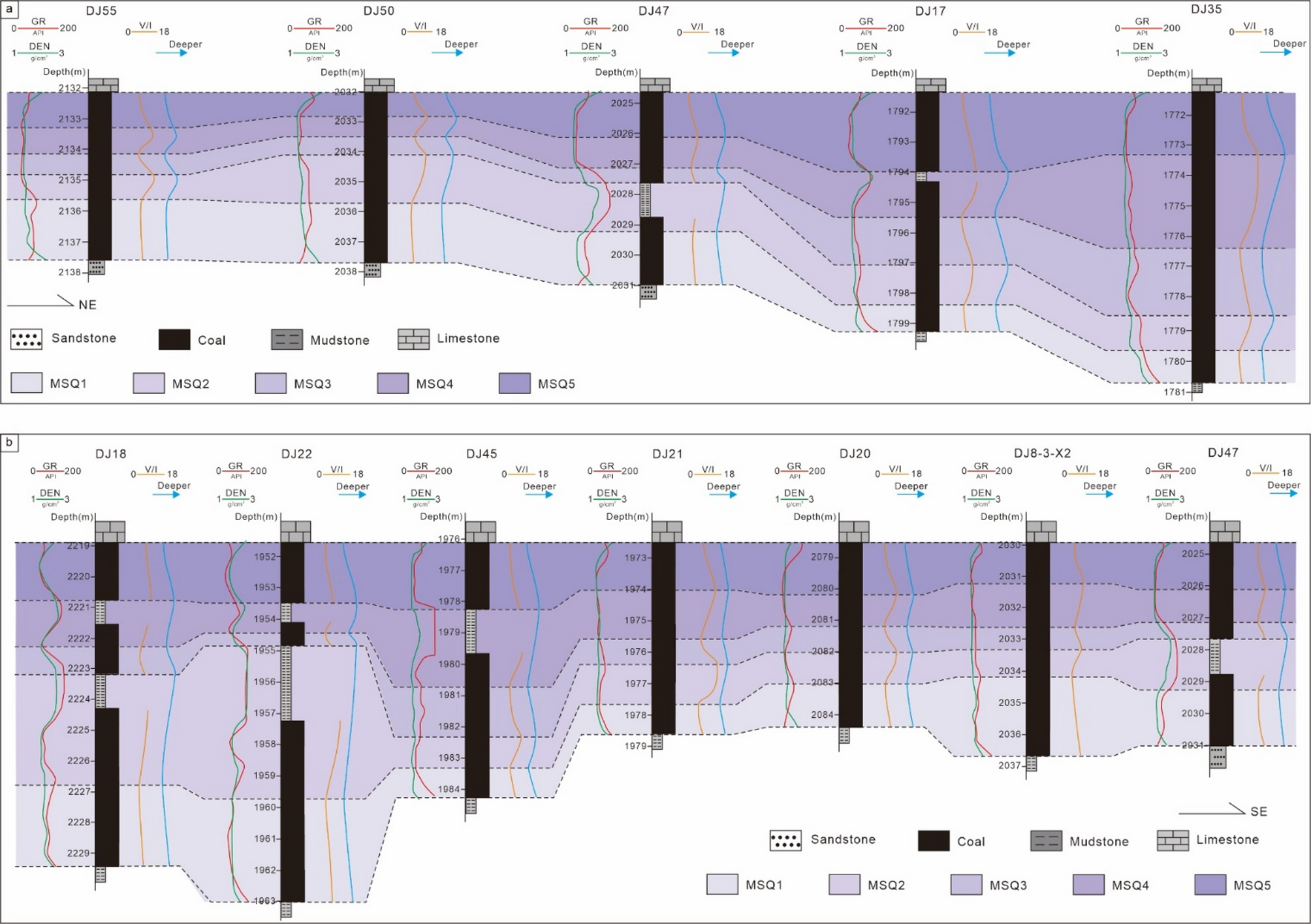

Microsequence (fifth-order sequence) correlation section of the No. 8 coal seam. (a) Northeast-trending well section (DJ55-DJ50-DJ47-DJ17-DJ35); section location shown in Fig. 1b (AA’). (b) Southeast-trending well section (DJ18-DJ22-DJ45-DJ21-DJ20-DJ8-3-X2-DJ47); section location shown in Fig. 1b (BB’).
