Fig. 14
From: Dual and wideband mmWave 28/38 GHz quad port MIMO antenna for 5G and beyond applications

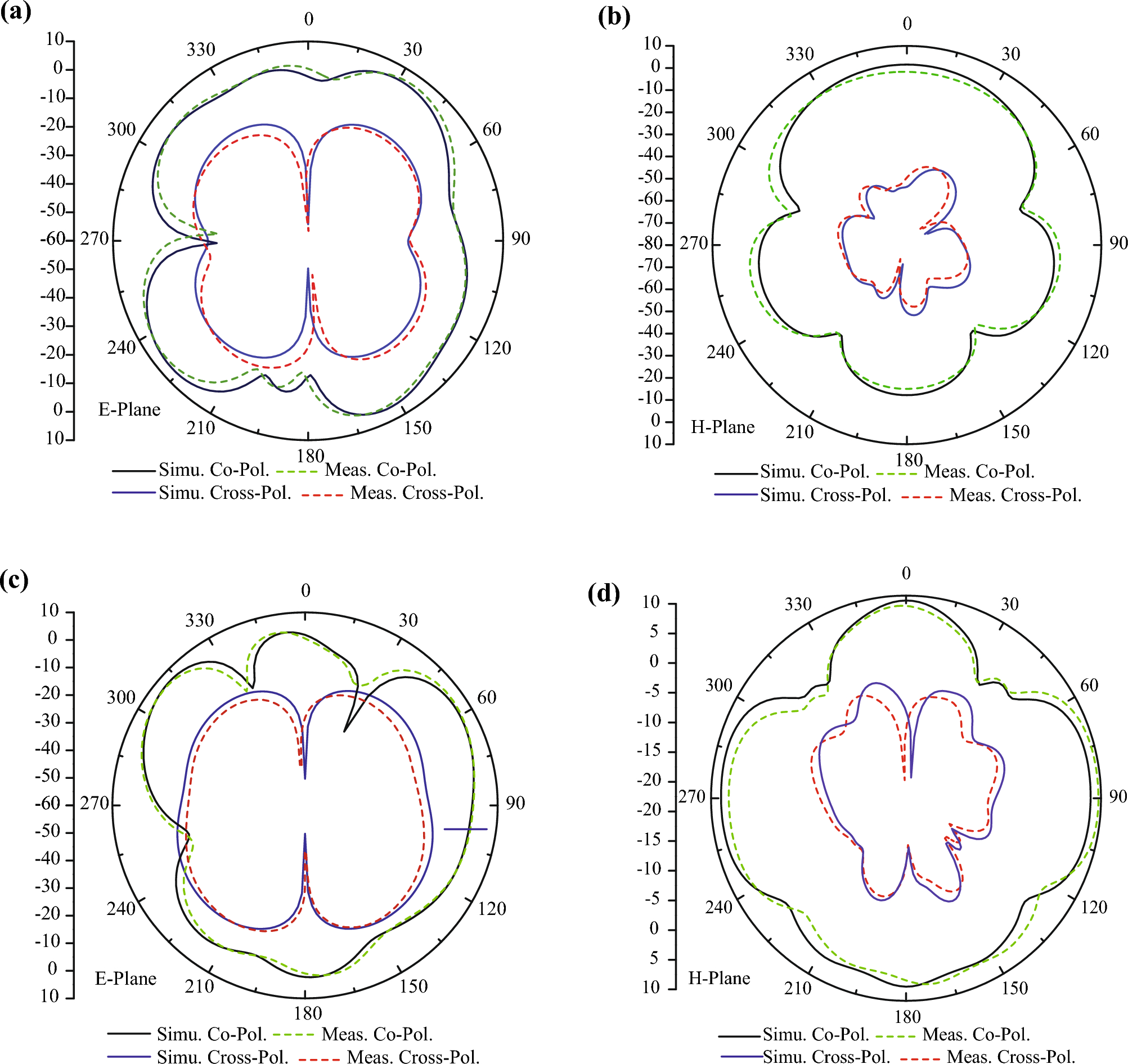

Co and Cross polarization radiation patterns a E-plane at 28 GHz b H-plane at 28 GHz c E-plane at 38 GHz d H-plane at 38 GHz.
