Fig. 5
From: Comparative proteome profiling of egg, larva and adult Hermetia illucens (Diptera: Stratiomyidae)

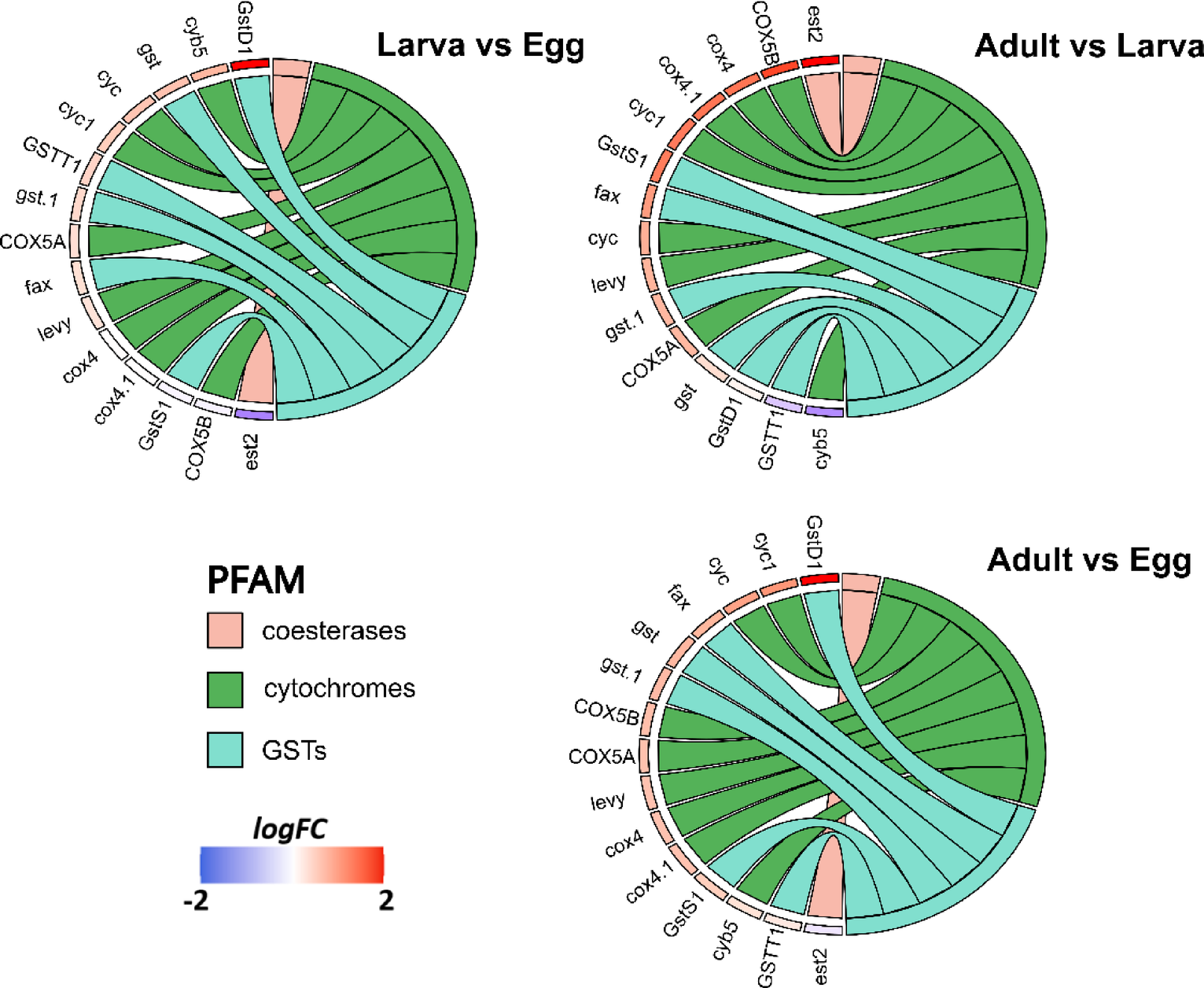

Proteins involved in bioremediation-associated PFAM terms across BSF developmental stages. Chord plots showing bipartite networks between proteins (left semicircle) and their associated PFAM domains (right semicircle), including GSTs (aqua teal), cytochromes (leaf green), and coesterases (soft pink). Each panel represents one pairwise comparison: Larva vs Egg, Adult vs Egg, and Adult vs Larva. The outer colored bars next to each protein node indicate differential expression status: red for upregulated and blue for downregulated proteins.
