Fig. 6

From: Increased circulating heat shock protein Hsp70 serum levels as a potential biomarker in bronchial asthma patients

Fig. 6

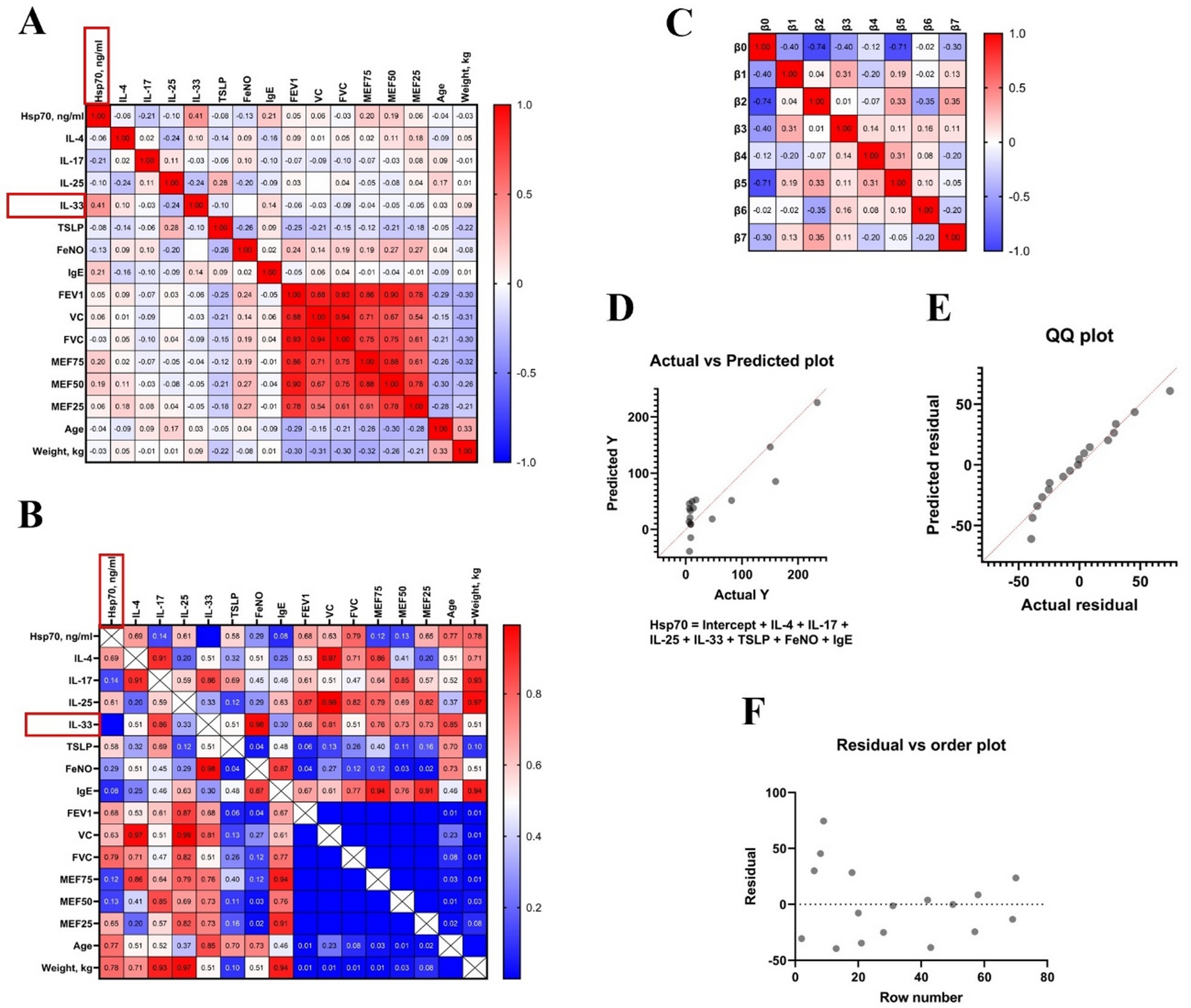

Results of multiple regression model calculation. (A) Heat maps showing Pearson correlations for the studied parameters and corresponding P values (B). Red bounding boxes indicate a significant interaction (p < 0.05). (C) Parameter covariance: β0 – Intercept, β1 – IL-4, β2 – IL-17, β3 – IL-25, β4 – IL-33, β5 – TSLP, β6 – FeNO, β7 – IgE. (D) Visualization of the performance of a regression model. (E) QQ plot for visualizing the normality of the distribution of residues, (F) Residual vs. order plot for checking the assumption that the residuals are independent of each other.
