Fig. 1 | Scientific Reports

Fig. 1

From: Lower limb motor effects of DBS neurofeedback in Parkinson’s disease assessed through IMU-based UPDRS movement quality metrics

Fig. 1

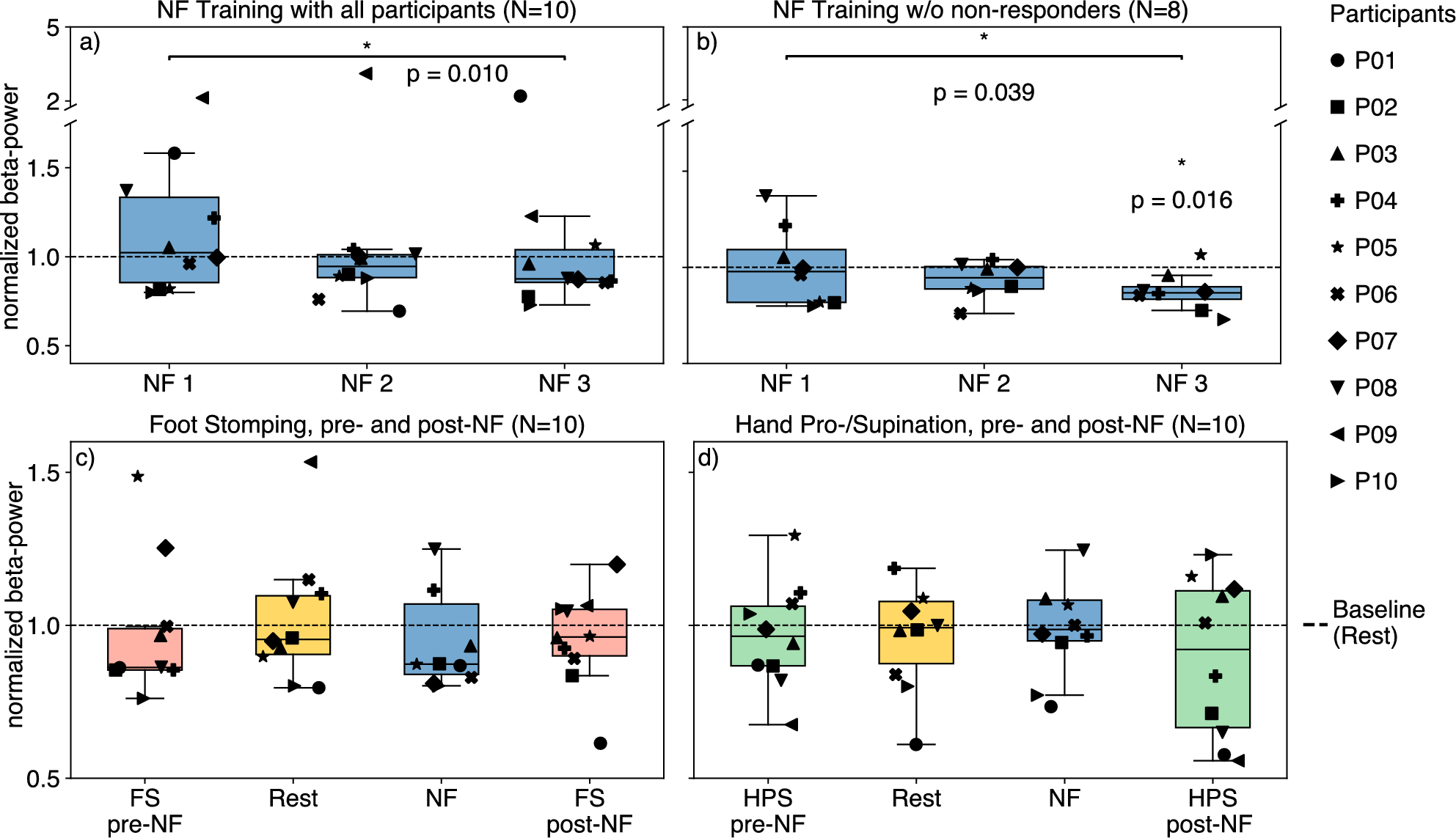

Median beta-power during the recording blocks. For each participant, the beta-power value was normalized by the median baseline rest period of each block. (a) Neurofeedback training blocks across all participants; (b) Neurofeedback training blocks without non-responders. The p-value and significance star on the right (p = 0.016) are indicating the difference of the third neurofeedback training block compared to baseline; (c) FS task block; (d) HPS task block. NF: Neurofeedback; FS: Foot Stomping; HPS: Hand pronation-supination.
