From: Pan-cancer analysis reveals netrin-1 receptors as potential tumor biomarkers and immune-related therapeutic targets

Fig. 3

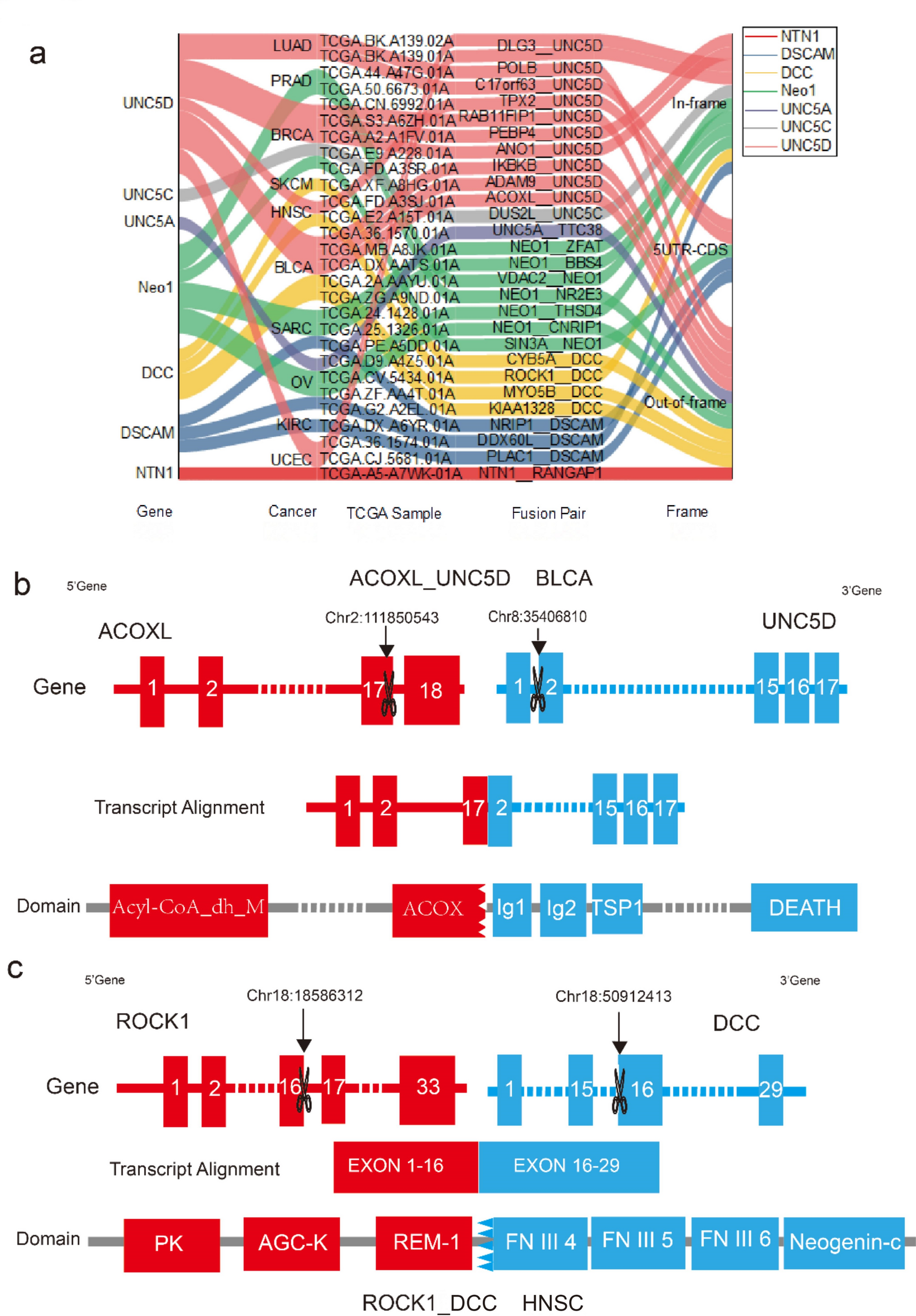

Fusion genes of Netrin1 and its receptors. (a) The fusion genes of NTN1, DSCAM, DCC, NEO1, UNC5A, UNC5C, and UNC5D in various cancers. (b) The process of fusion transcription of ACOXL and UNC5D in BLCA. Red indicates exon of ANO1, blue indicates exon of UNC5D, and dotted line indicates the connection of two partial genes. (c) The process of fusion transcription of ROCK1 and DCC in HNSC. Red indicates exon of ROCK1, blue indicates exon of DCC, and dotted line indicates the connection of two partial genes.
