Figure 7

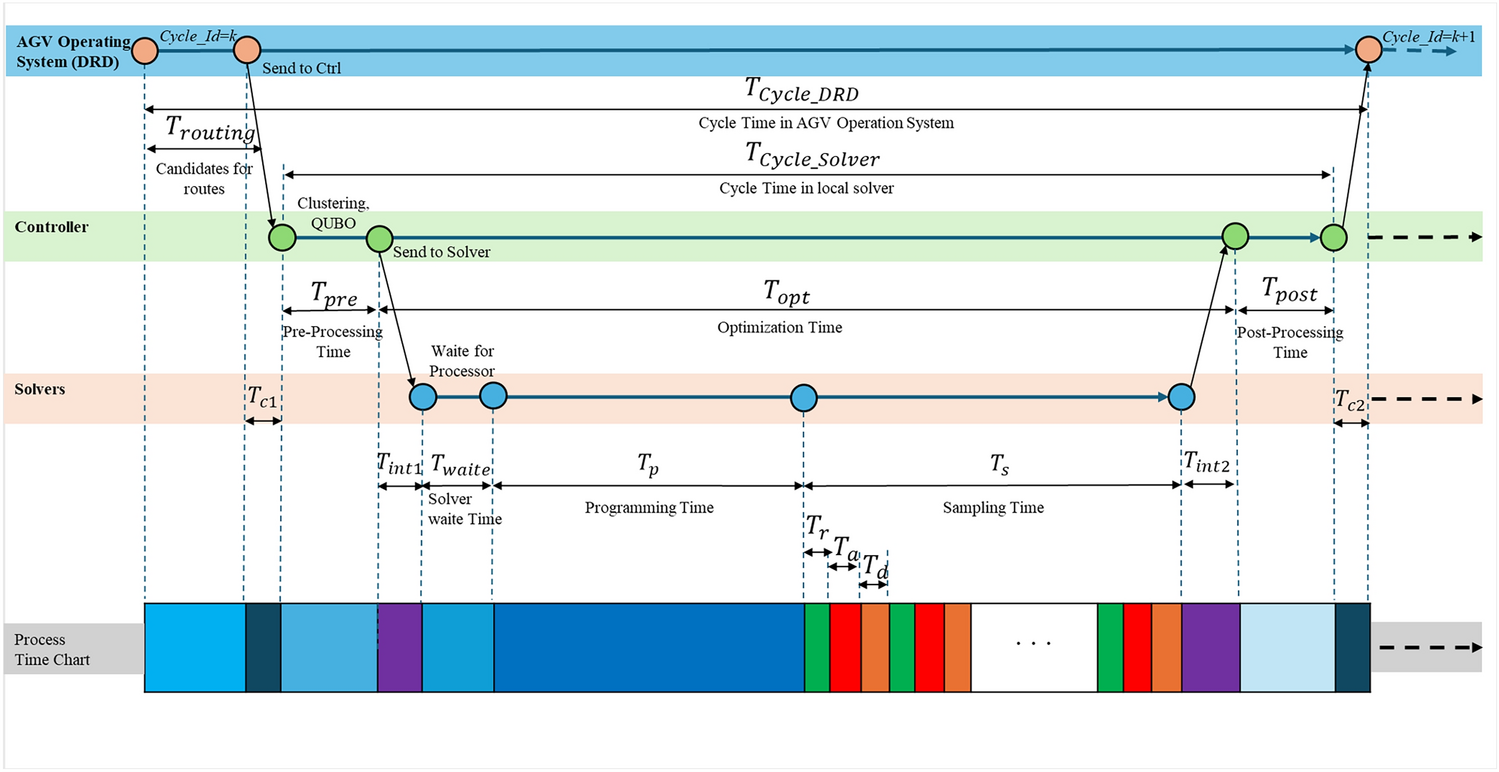

The route optimization process time chart. The processing times between \(Cycle\_Id\) = k and \(Cycle\_Id\) = \(k+1\) is shown on the bottom gray bar, which remains nearly the same across all solvers. There are minor differences depending on whether the solver operates in a local network or a cloud network. The processing time is divided into three levels: the AOS based on (Dynamic Route Director: DRD) as the First system level (\(T_{\text {Cycle\_DRD}}\)), the Controller as the second level (\(T_{\text {Cycle\_Solver}}\)), and the Solvers the third level (\(T_s\)).
