Fig. 3

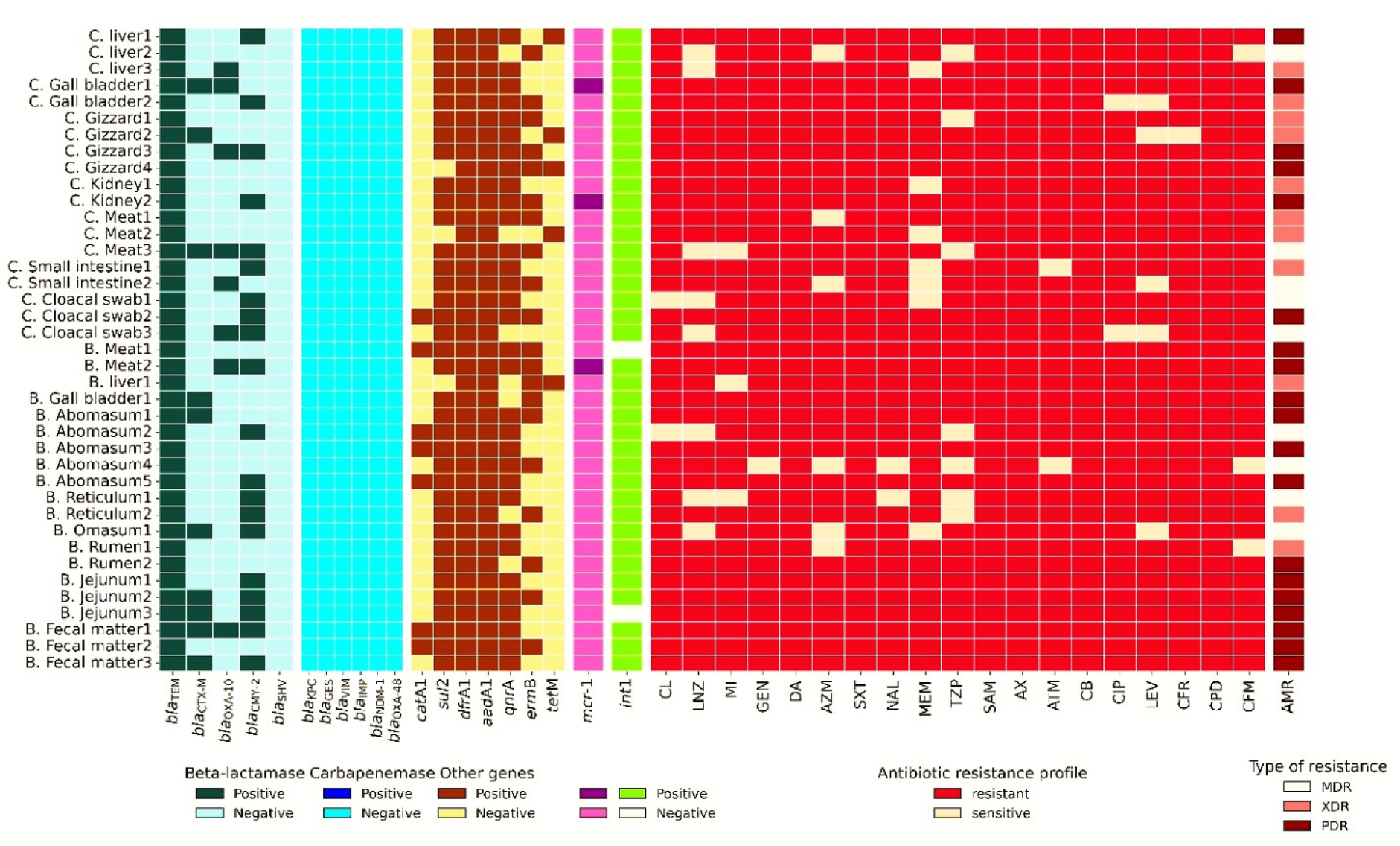

A heatmap representing association matrix between genotype and resistance phenotype as beta-lactamases genes (blaTEM, blaCTX−M, blaOXA−10, ampC type (blaCMY−2), and blaSHV), carbapenemase resistant genes (blaKPC, blaNDM−1, blaOXA−48, blaIMP, blaGES, and blaVIM), other genes (catA1, sul2, dfrA1, aadA1, qnrA, ermB, and tet(M)), colistin resistance gene (mcr-1), integron integrase gene (int1), resistance profile of each isolate to different antibiotics (clarithromycin (CL), linezolid (LNZ), minocycline (MI), gentamicin (GEN), clindamycin (DA), azithromycin (AZM), sulfamethoxazole/trimethoprim (SXT), nalidixic acid (NAL), Meropenem (MEM), piperacillin/tazobactam (TZP), ampicillin/sulbactam (SAM), amoxicillin (AX), aztreonam (ATM), carbenicillin (CB), ciprofloxacin (CIP), levofloxacin (LEV), cefadroxil (CFR), Cefixime, (CFM), cefpodoxime (CPD)), and type of resistance.
