Fig. 10
From: Long distance migration assisted structural trapping during CO2 storage in offshore basin

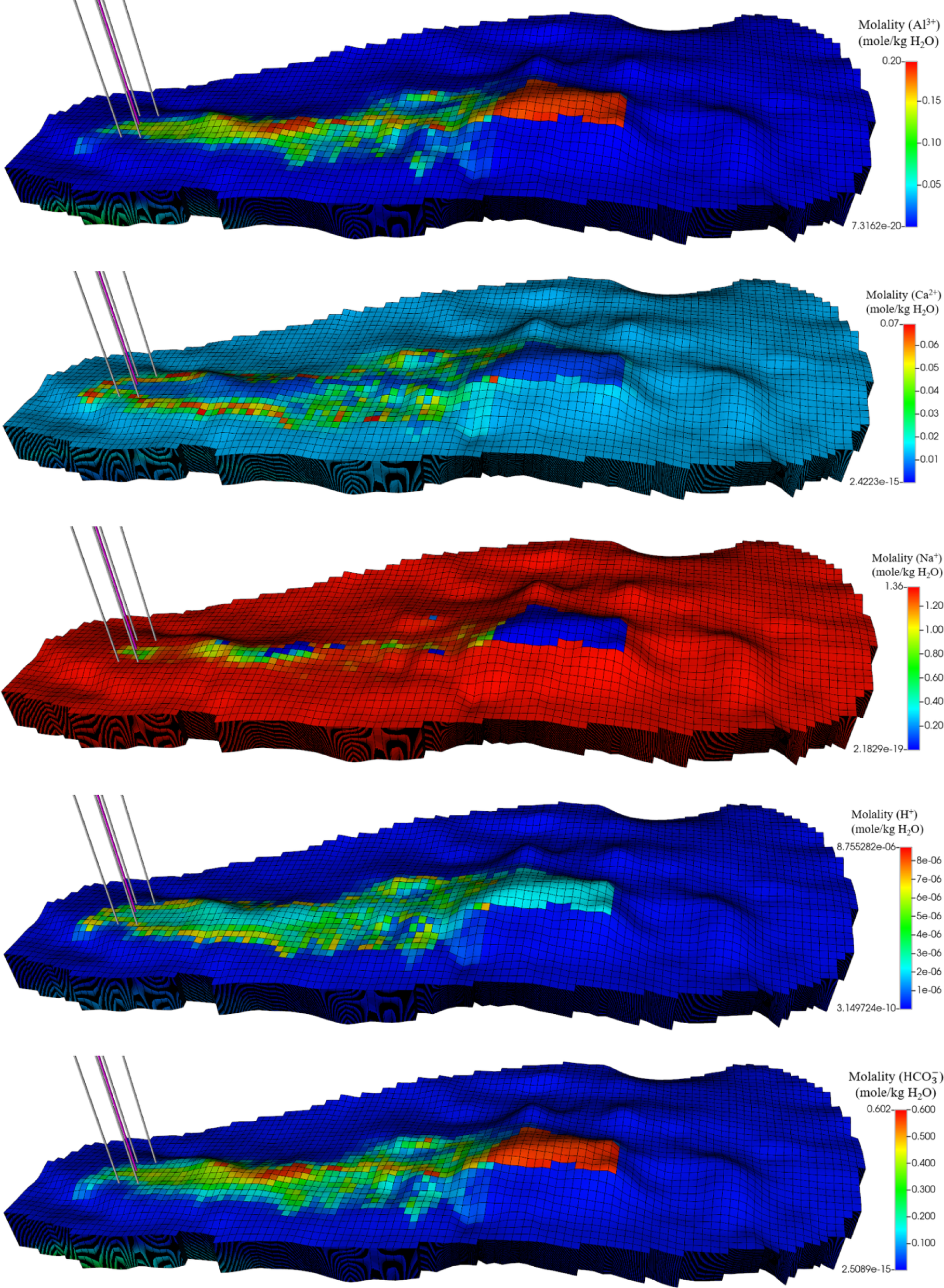

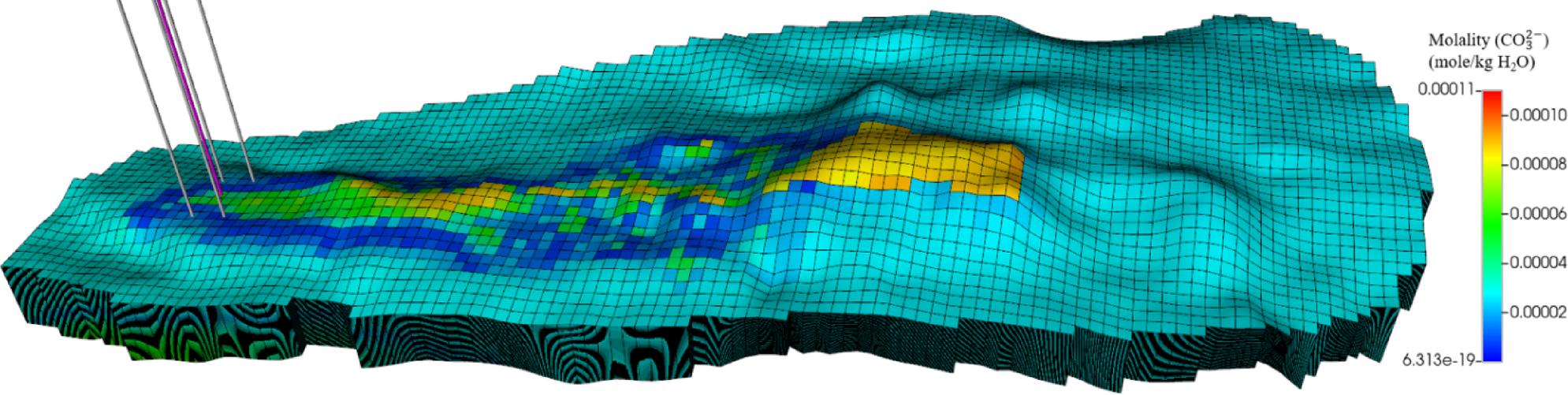

Spatial distribution of ion changes after simulation time of 7770 years.
