From: Long distance migration assisted structural trapping during CO2 storage in offshore basin

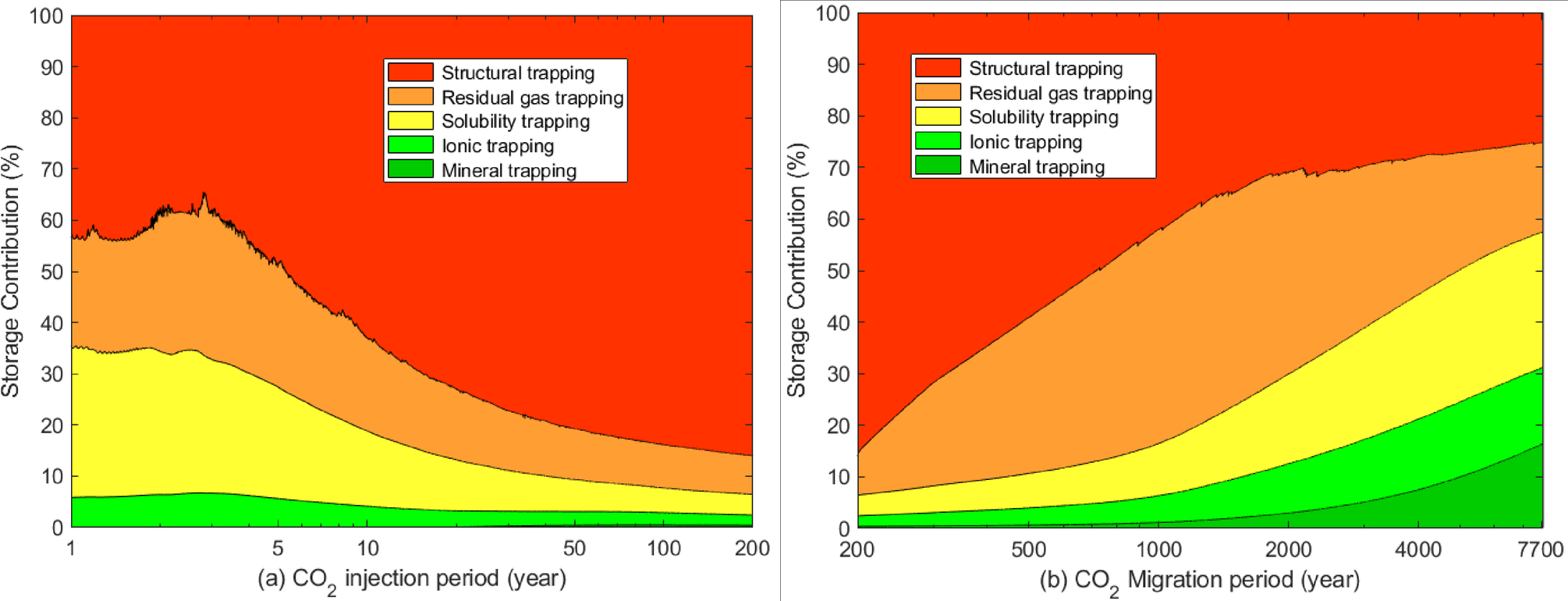

Storage contributions of different trapping mechanisms (9800-01-01) (a) CO2 injection period (b) CO2 long-distance migration period.
