Fig. 6

From: Molecular recognition of natural compounds by MR1 and their implication in MAIT cell activation elucidated through McMD-based dynamic docking simulations

Fig. 6

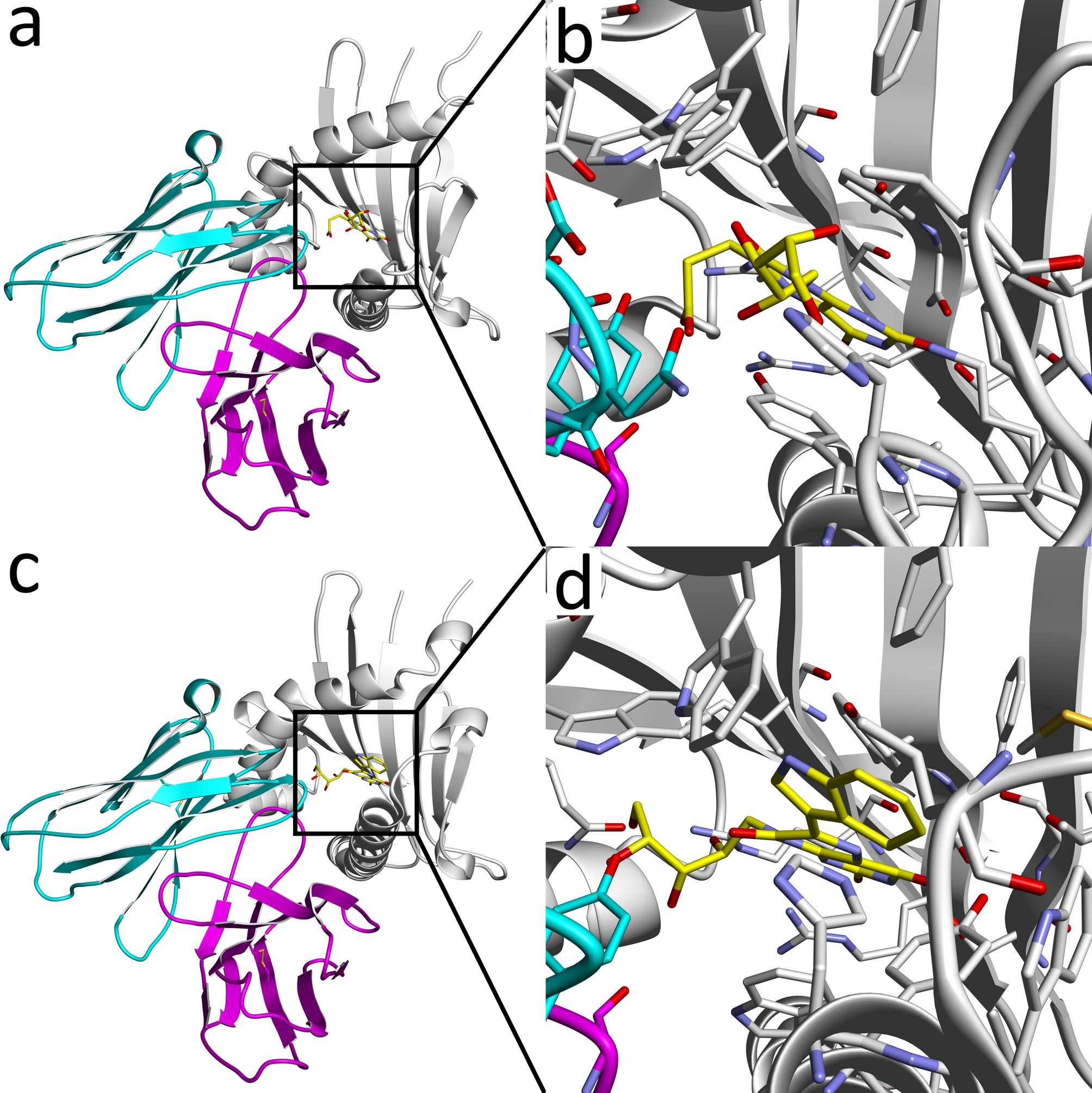

Recognition of PLI and PLIII by MAIT-TCR. Global overview (a) and zoomed-in version (b) of TCR bound to r1PLI. Global overview (c) and zoomed-in version (d) of TCR bound to r1PLIII. Here, MR1 is shown as a white cartoon, PLI & PLIII in yellow CPK, TCRα in cyan cartoon and TCRβ in magenta cartoon. In the zoomed in figures (b and d), the sidechains within 5Å of the ligand are also shown.
