Fig. 6
From: PortGISANS: nested mirror optics for a portable GISANS adapter

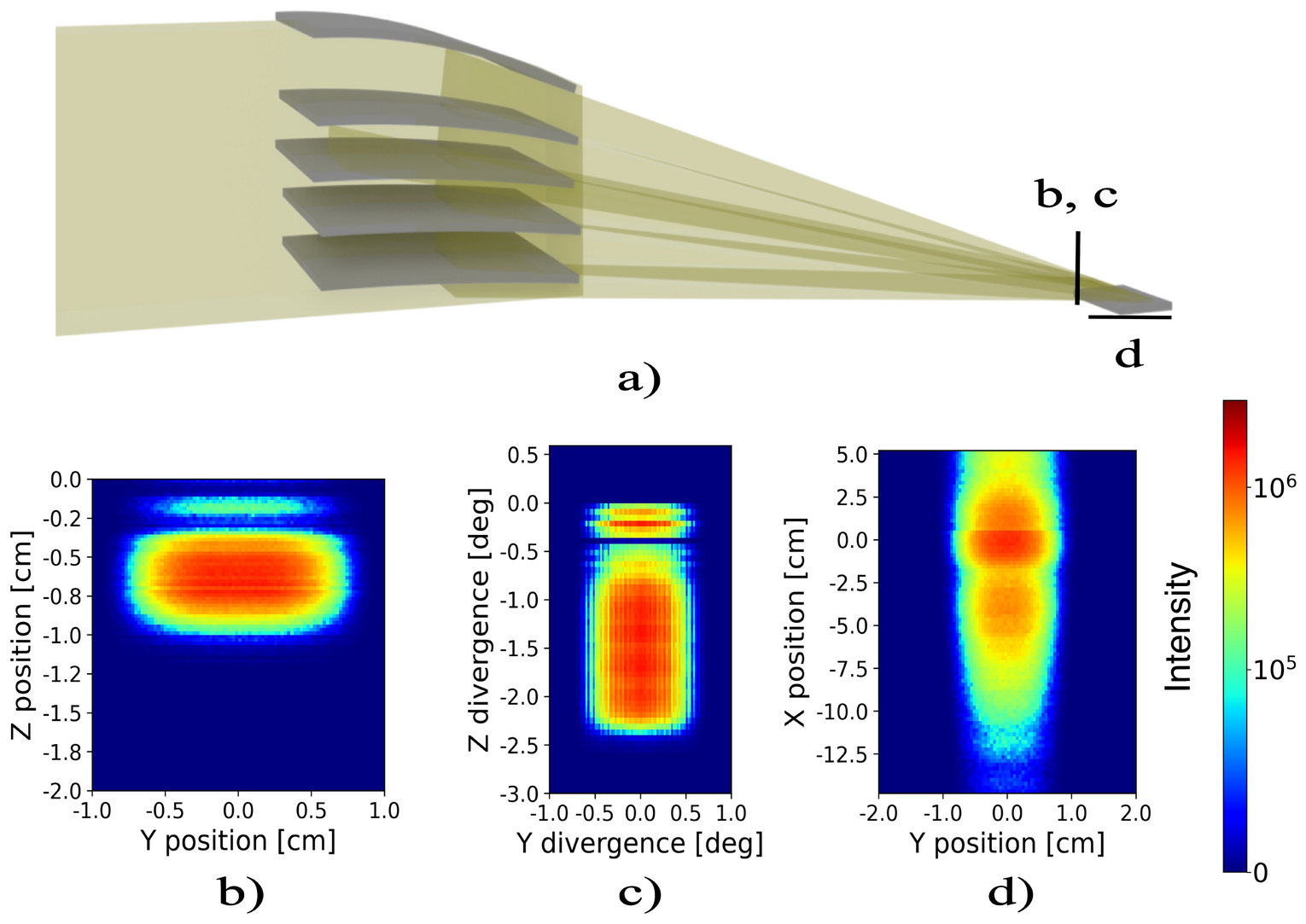

Panel (a) displays a sketch of the parabolic mirror assembly. Panels (b) and (c) depict the intensity and divergence profiles of the diverted beam, right before the sample. Panel (d) Shows the intensity profile along the sample surface.
