From: Effect of transverse magnetic field on hot electron and ion fluxes generated by laser interactions with disc-double-coil targets

Fig. 21

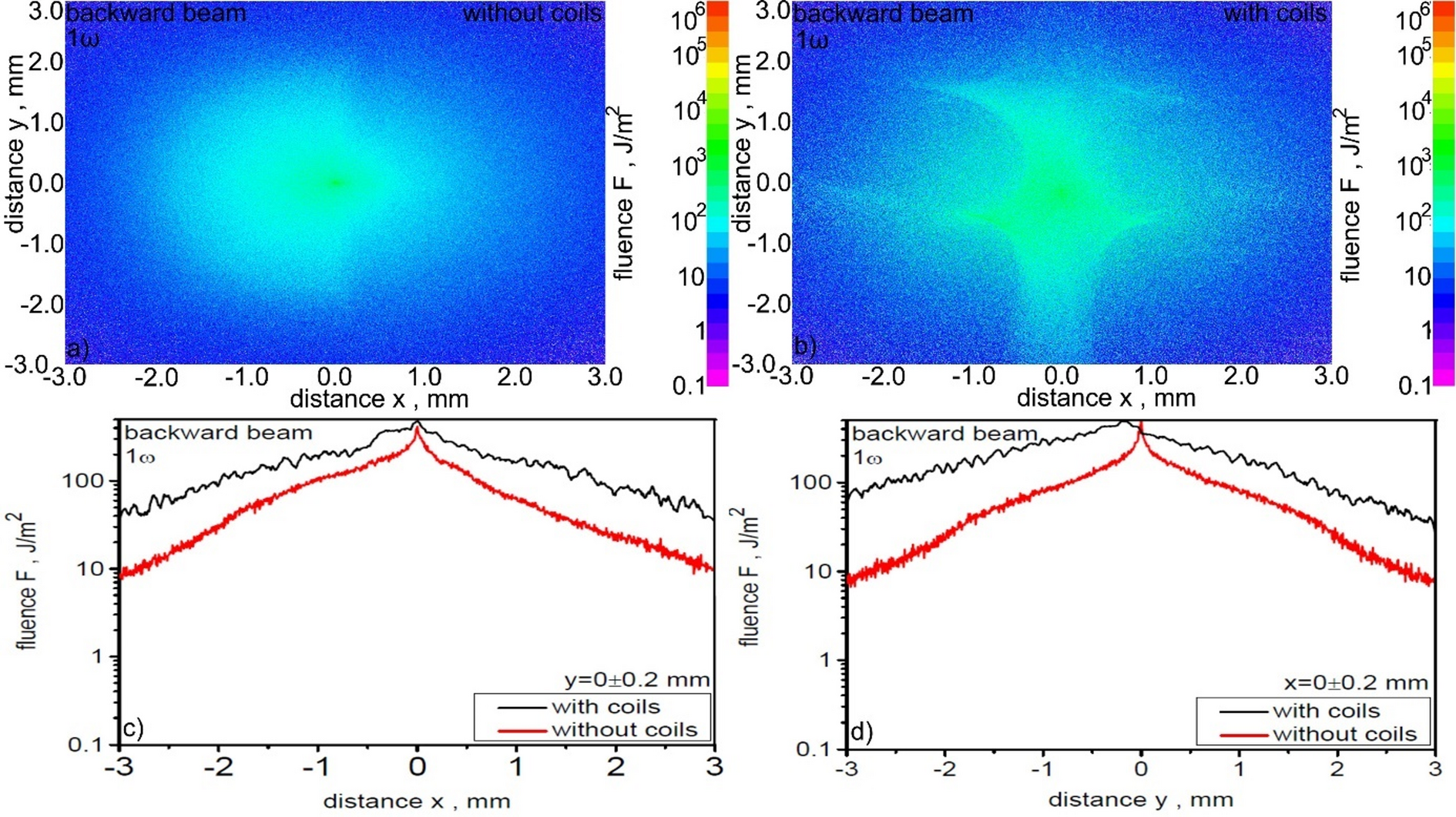

2D distributions of energy fluence in the x–y plane for the HE flux propagating backward in the case of a target without a coil (a), and with a coil (b). Bottom graphs present HE flux cross-sections along x (c) and y (d) axis taken at distances 1.5 mm from the plane intersecting the centers of the coils. The case of irradiation by 1ω PALS iodine laser.
