Fig. 8 | Scientific Reports

Fig. 8

From: Remote ischemic preconditioning improves ileal microvascular oxygenation during rodent hemorrhagic shock without improving variables of microcirculation and mitochondrial respiration

Fig. 8

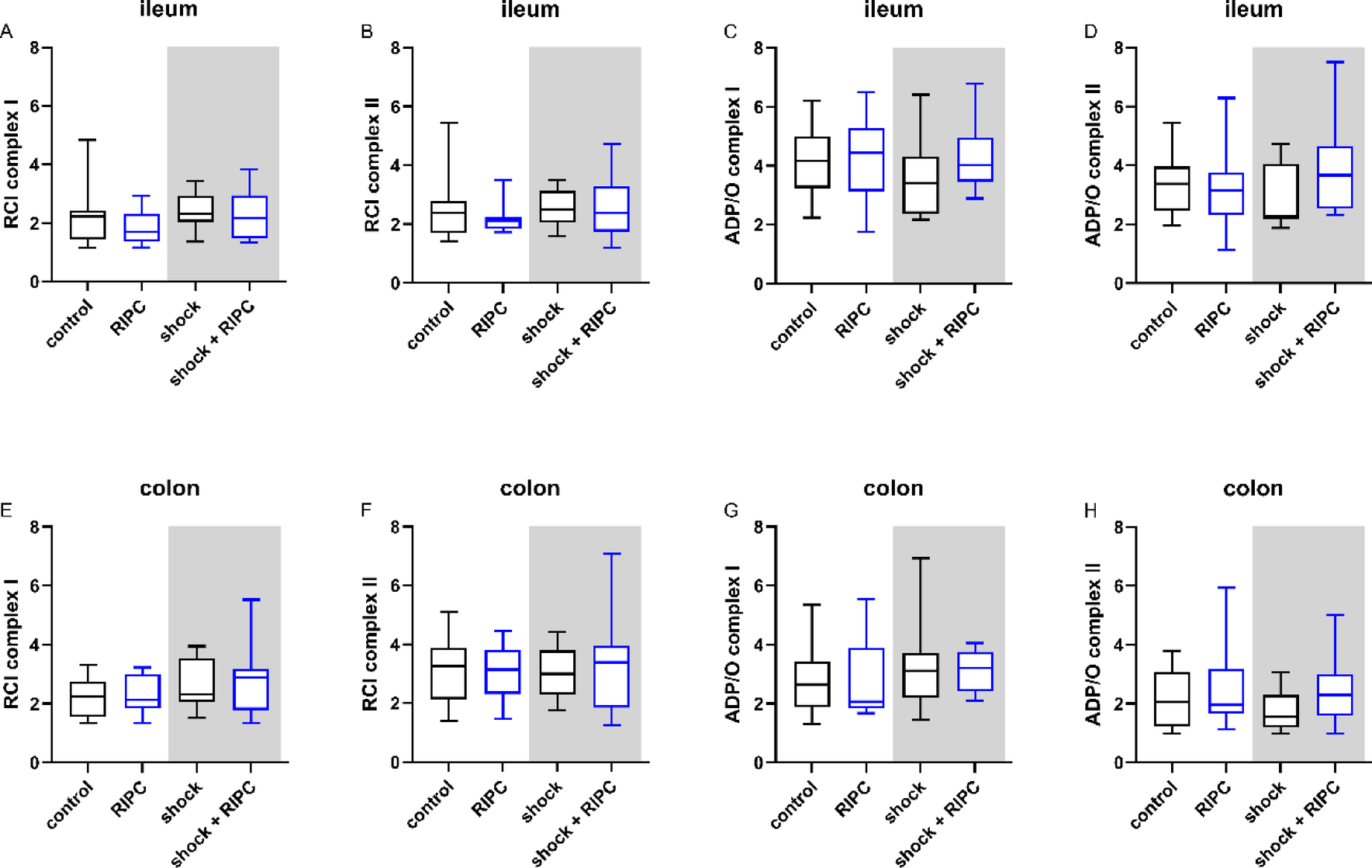

Mitochondrial respirometry. Respiratory Control Index (RCI) and ADP/O-ratio of ileal (A–D) and colonic (E–H) tissue samples measured ex-vivo via respirometry after selective complex I and complex II substrate supply. Data are presented for n = 12 as median and interquartile range. Whiskers indicate maximal and minimal values. Kruskal-Wallis testing and Dunn´s multiple comparisons did not reveal significant differences between the experimental groups.
