From: Reactive air plasma treatment enhances extraction yield and bioactive anti-aging properties of wheat lipids

Fig. 1

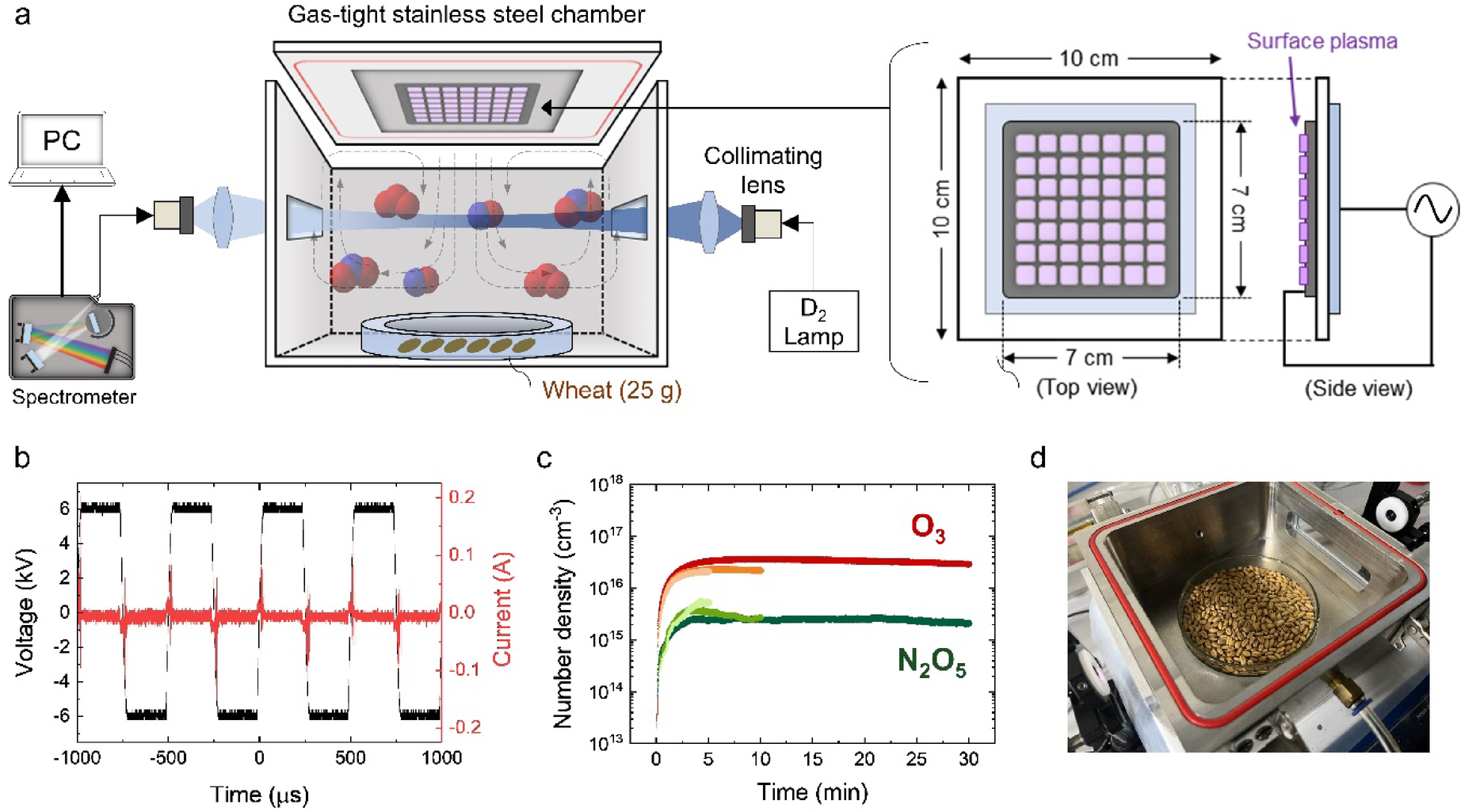

(a) Plasma treatment setup and in-situ measurement. (a) Schematic of the plasma reactor and sDBD source (details in the main text). (b) Measured voltage (black) and current (red) waveforms of sDBD. (c) Time evolution of O₃ and N₂O₅ number densities during plasma discharge at different treatment times. (d) Photograph of the plasma reactor used for wheat treatment.
