From: Demonstrating soft X-ray tomography in the lab for correlative cryogenic biological imaging using X-rays and light microscopy

Fig. 8

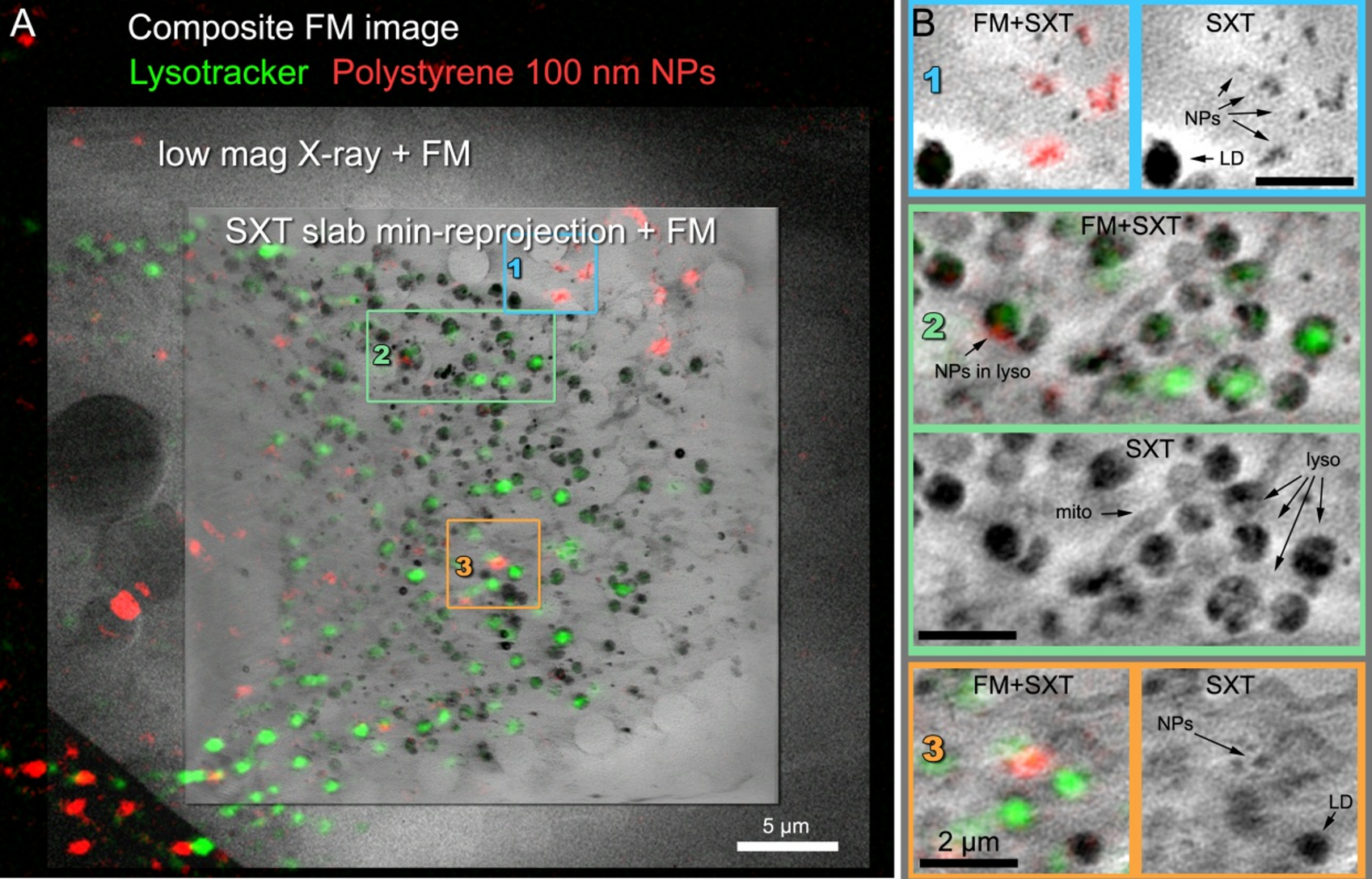

A HeLa cell incubated for four hours with 100 nm fluorescent polystyrene nanoparticles. (A) Composite FM image of Lysotracker and fluorescent nanoparticles overlaid with a low magnification X-ray projection and a three high magnification SXT slices across the cell, (B) Zoom-in of selected areas in the cell cytoplasm showing the SXT slice (top of each panel) and the same SXT slice overlaid with the composite FM image (bottom of each panel).
