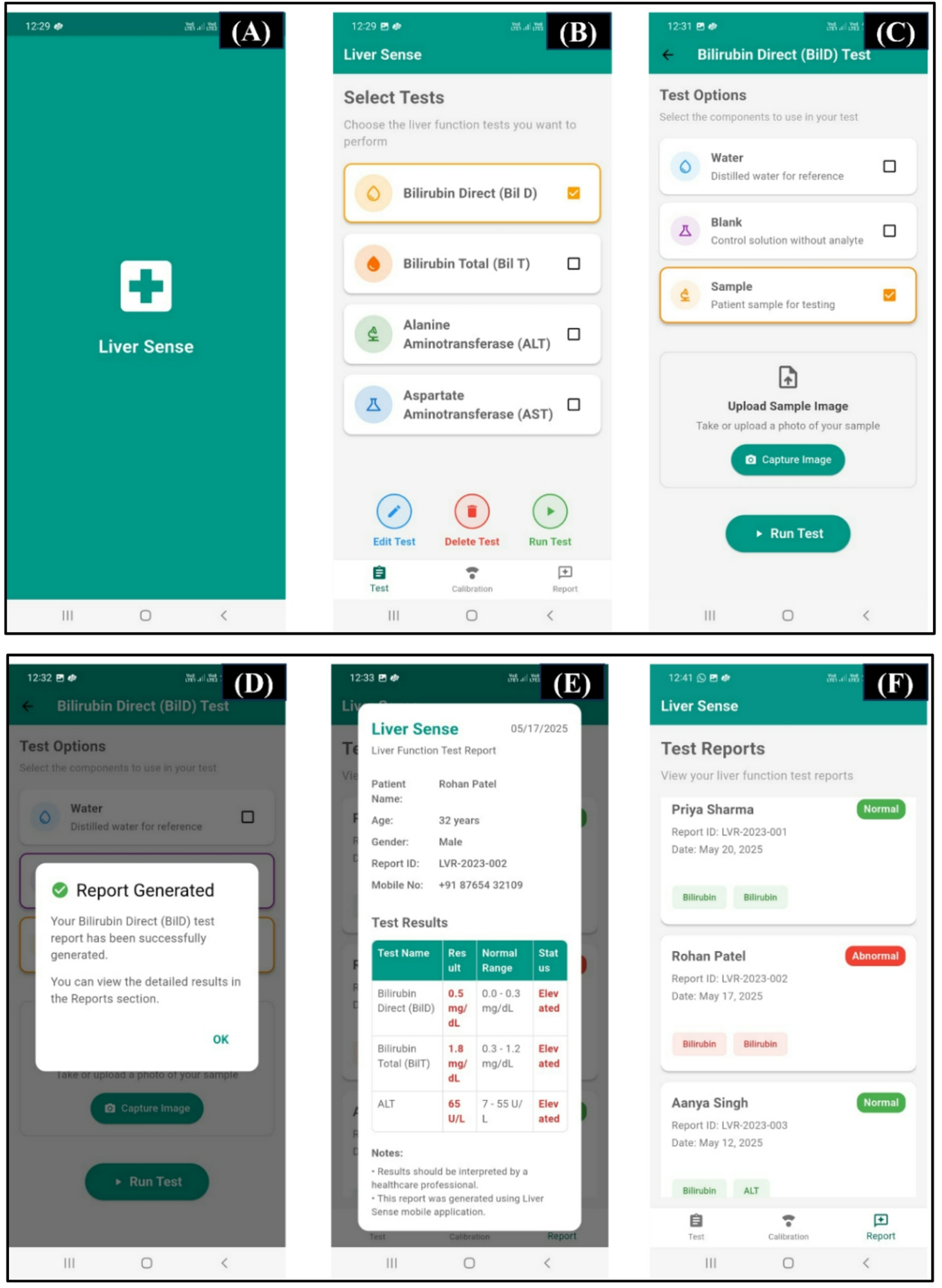

Graphical user interface of the Liver Sense mobile application for testing the liver function. (A) Home screen providing access to core functionalities. (B) Interface for choosing among four key liver biomarkers. (C) Test configuration screen for Direct Bilirubin test, having options for selecting sample type and to upload or capture test images. (D) Confirmation message showing proper test initiation. (E) Detailed report view that displays quantified biomarker results. (F) Summary dashboard listing multiple test reports for future tracking.
