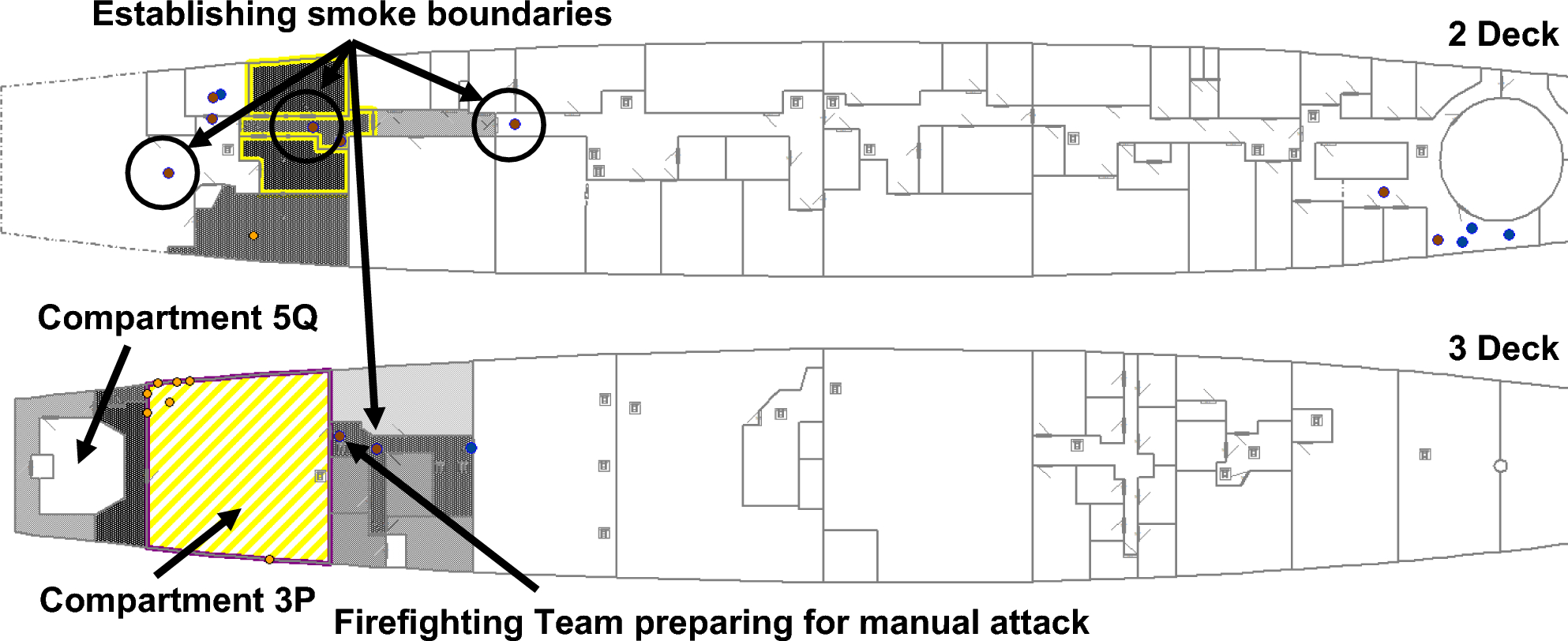

Fig. 17
From: An integrated analysis of naval platform survivability for mission resilience
At 429 s after detonation, the ruptured fire main is isolated; the fixed firefighting system has activated (diagonal shading in Compartment 3P); and smoke boundaries established.
