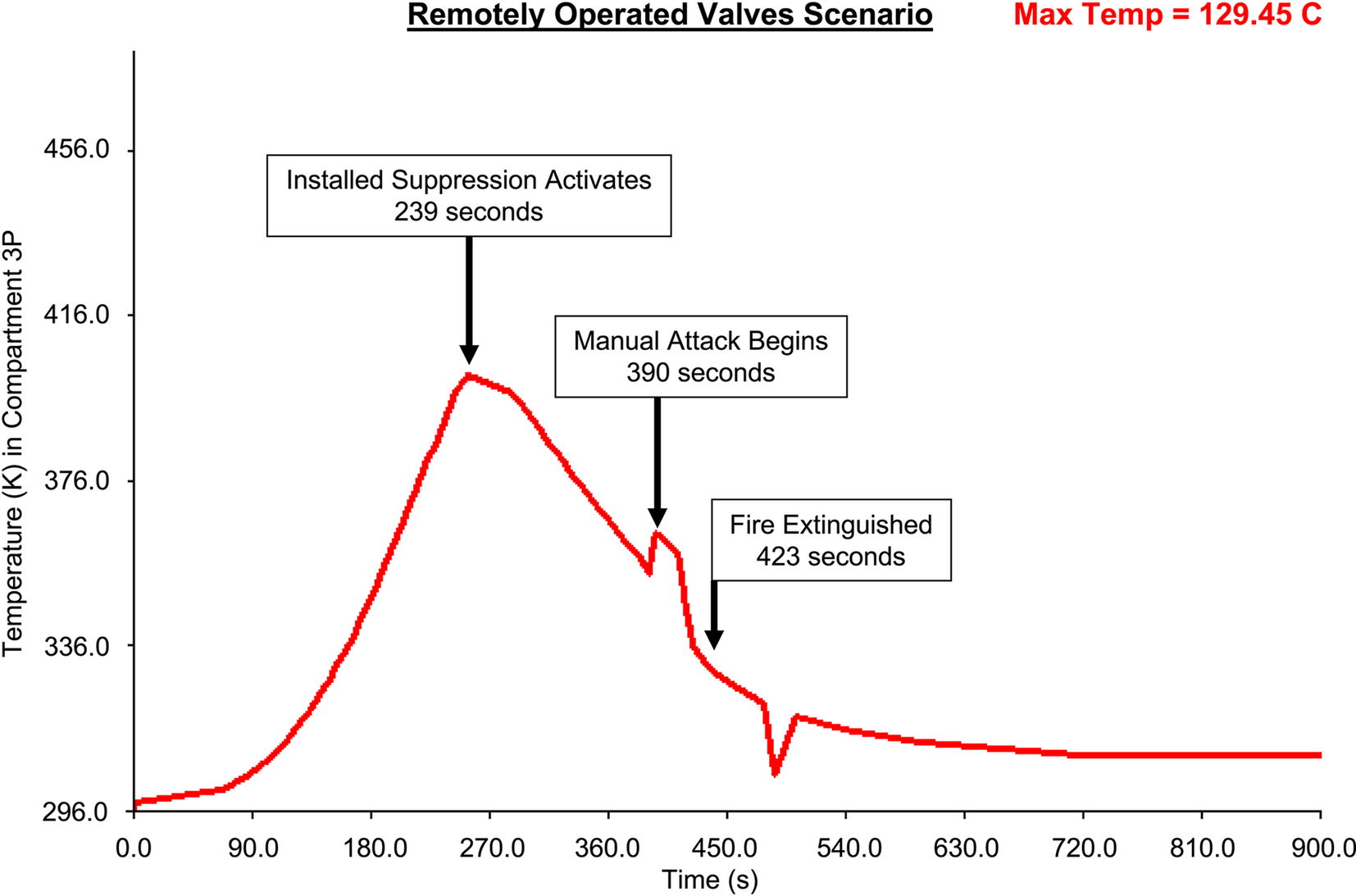

Fig. 20
From: An integrated analysis of naval platform survivability for mission resilience
Fire temperature profile in Compartment 3P in response to the activation of the fixed firefighting system and manual firefighting for Configuration 2, remotely operated valve configuration.
