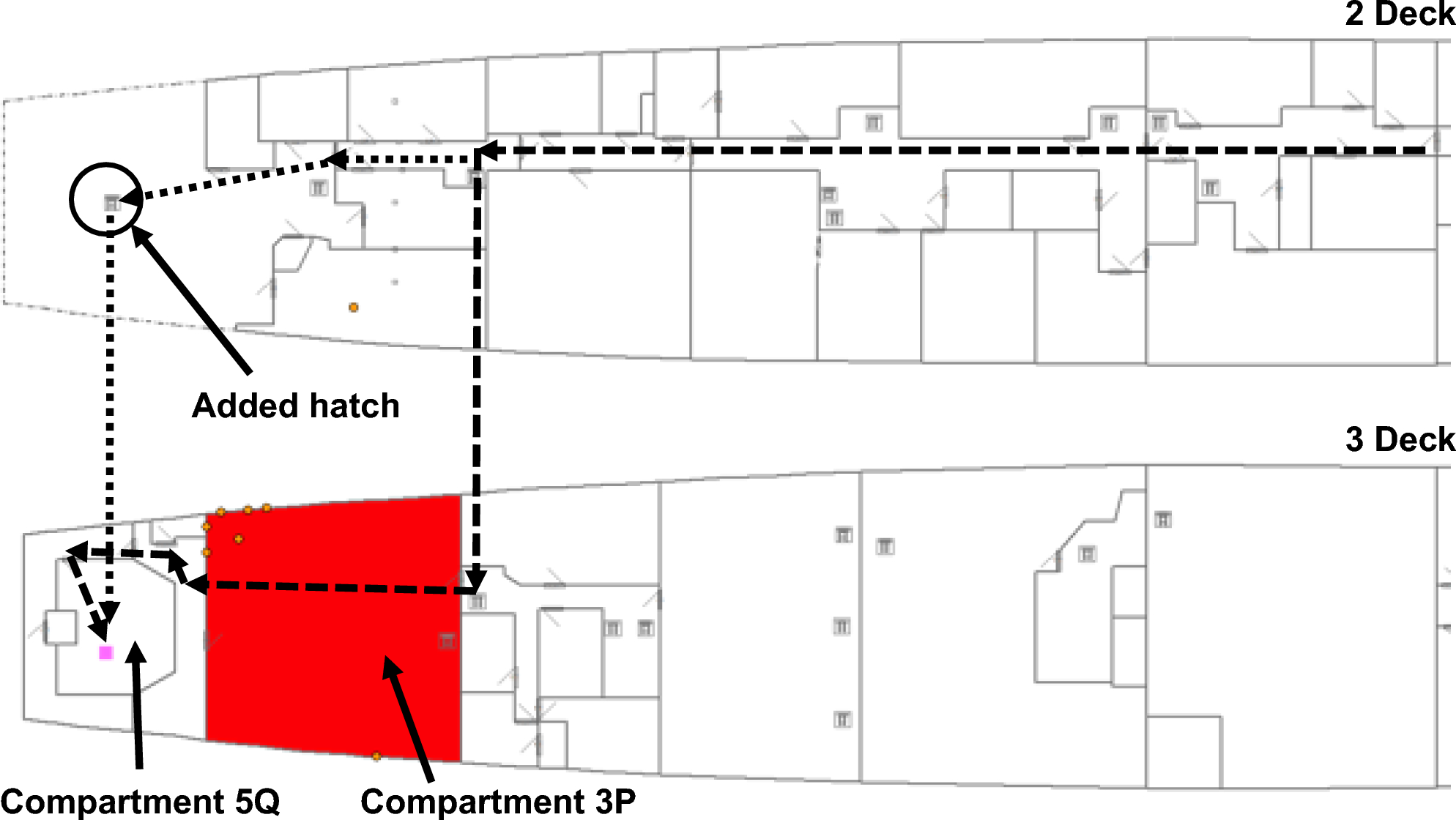

Fig. 9
From: An integrated analysis of naval platform survivability for mission resilience
Two access routes to Compartment 5Q: the dashed line represents Configurations 1, 2 and 3; and the dotted line extends the dashed line to represent the access route for Configuration 4.
