From: Chronic environmental temperature affects protein expression in the eye of adult zebrafish (Danio rerio)

Fig. 3

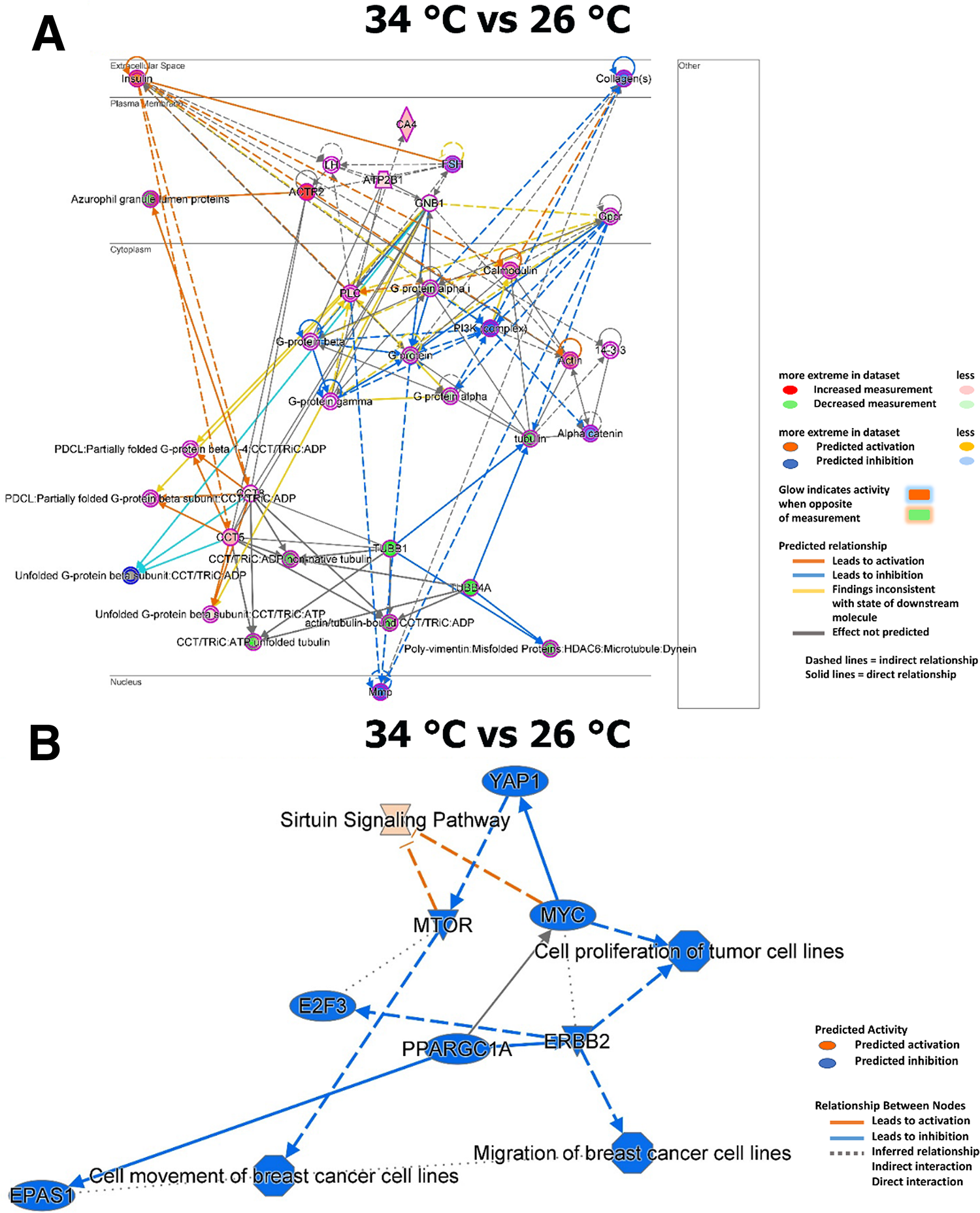

Bioinformatic analysis of differentially expressed proteins at high temperature (34 °C) compared to the control (26 °C) using IPA. (A) Merged network analysis combining the neurological network and the lipid metabolism network. Proteins identified in our dataset are coloured in green. The legend provides details on all other symbols. (B) Graphical summary providing a high-level overview of the major biological themes and most significant entities predicted by IPA for differentially expressed proteins in the 34 °C vs. 26 °C comparison.
