Fig. 3
From: Enhancing DAS sensitivity through structural optimization of thin-walled cylinders

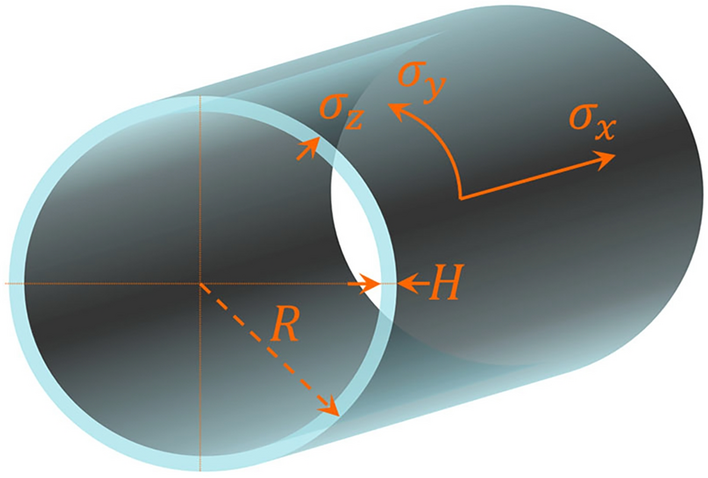

Mechanical model of a thin-walled cylinder under external acoustic pressure (p), indicating the cylinder radius (R) and wall thickness (H).
Fig. 3 | Scientific Reports
