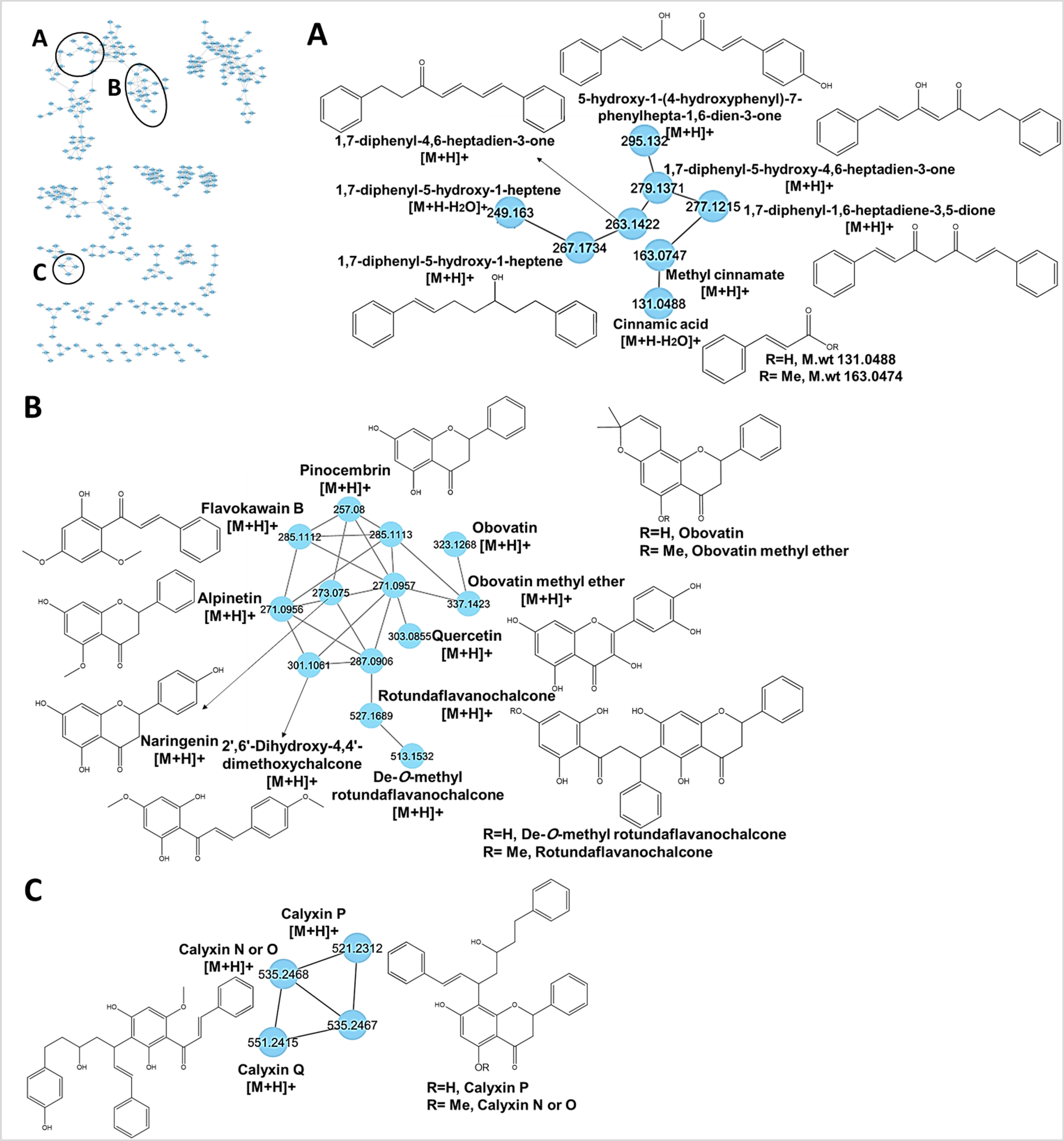

Fig. 1
GNPS molecular network of AKS in positive ion mode. The node label represents precursor mass (m/z). Cluster A, B, and C represents (diarylheptanoids), (flavanones & flavonochalcones & chalcones) and (calyxins), respectively.
