From: Pore-scale influence of surfactants on evaporation in a porous medium

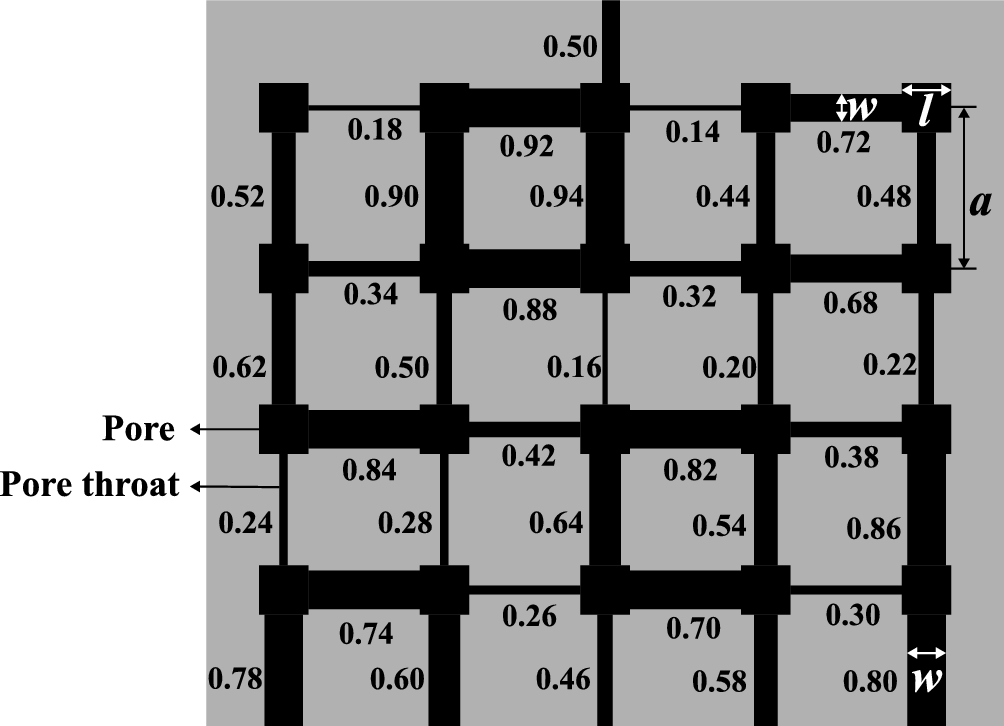

Schematic of the PDMS microfluidic pore network with graded throat widths (values labeled in mm). The layout is schematic, and a and l are not drawn to scale.
