Fig. 4
From: Pore-scale influence of surfactants on evaporation in a porous medium

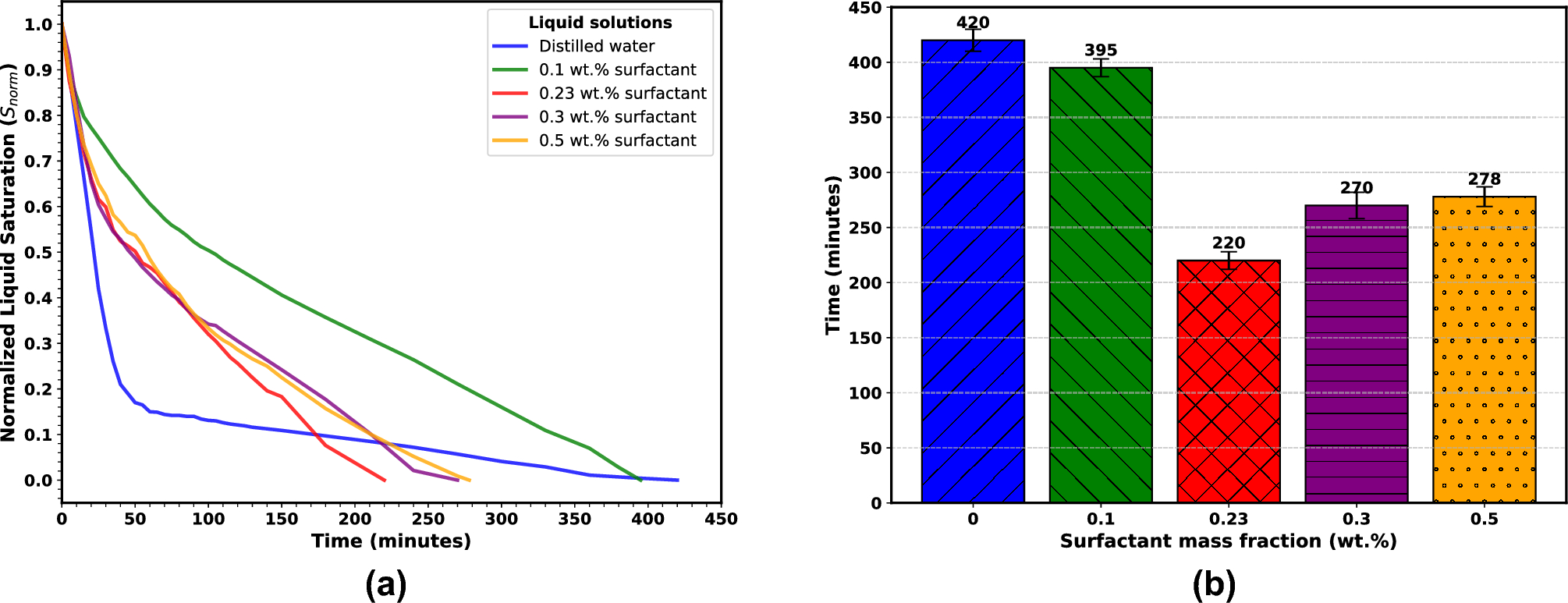

Evaporation patterns. (a) Evaporation curves (normalized liquid saturation vs. time) for pure water and SDS solutions; (b) Total evaporation time for water and SDS solutions at various concentrations.
