Fig. 5
From: Pore-scale influence of surfactants on evaporation in a porous medium

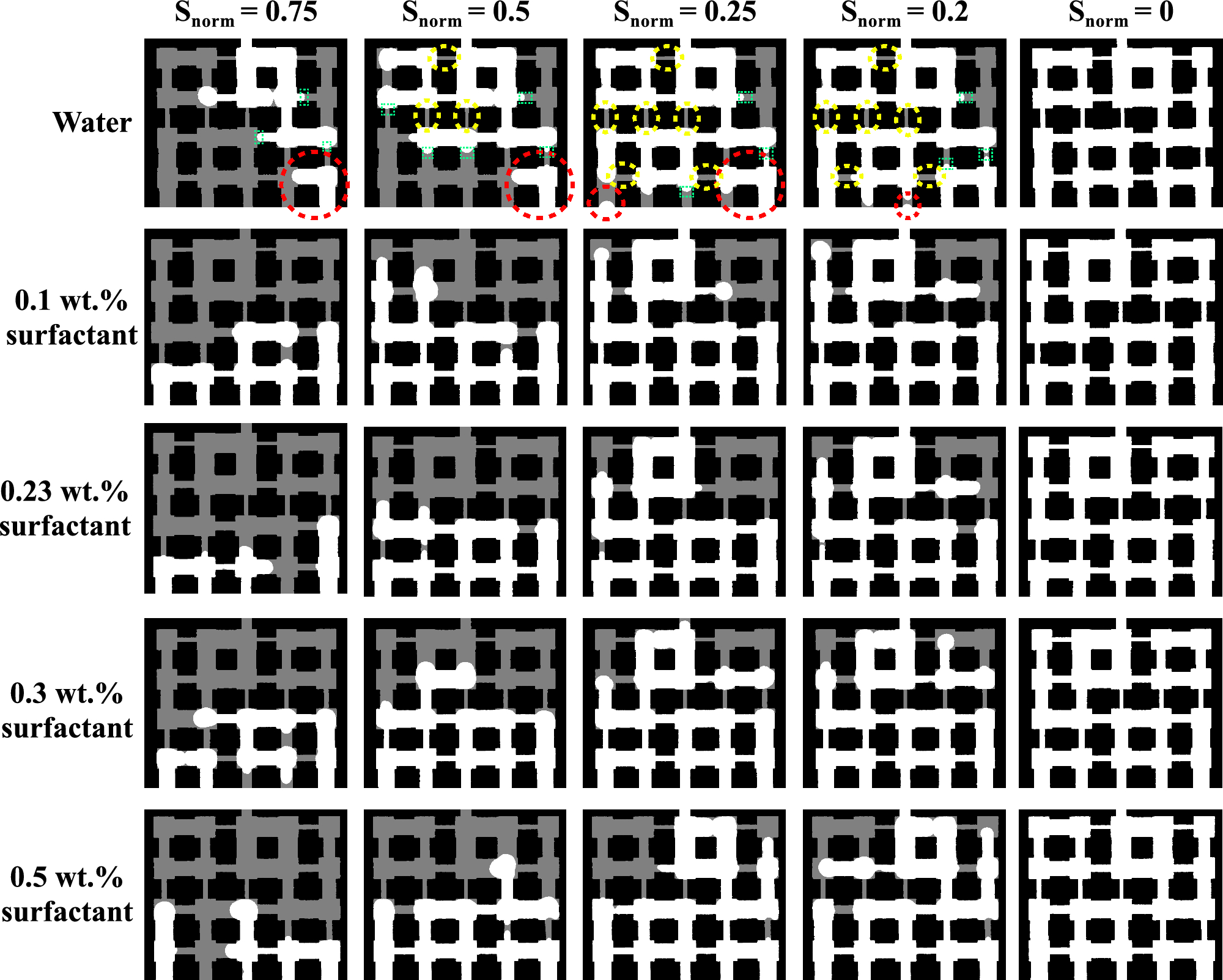

Pore-scale saturation front images during evaporation for water and SDS solutions. Red dashed circle show the isolated pocket of air; Green dashed boxes show the curved menisci; Yellow dashed circles show the disconnected liquid islands.
