Fig. 7
From: Antimicrobial activity of silver free powder coatings based on biocomponents

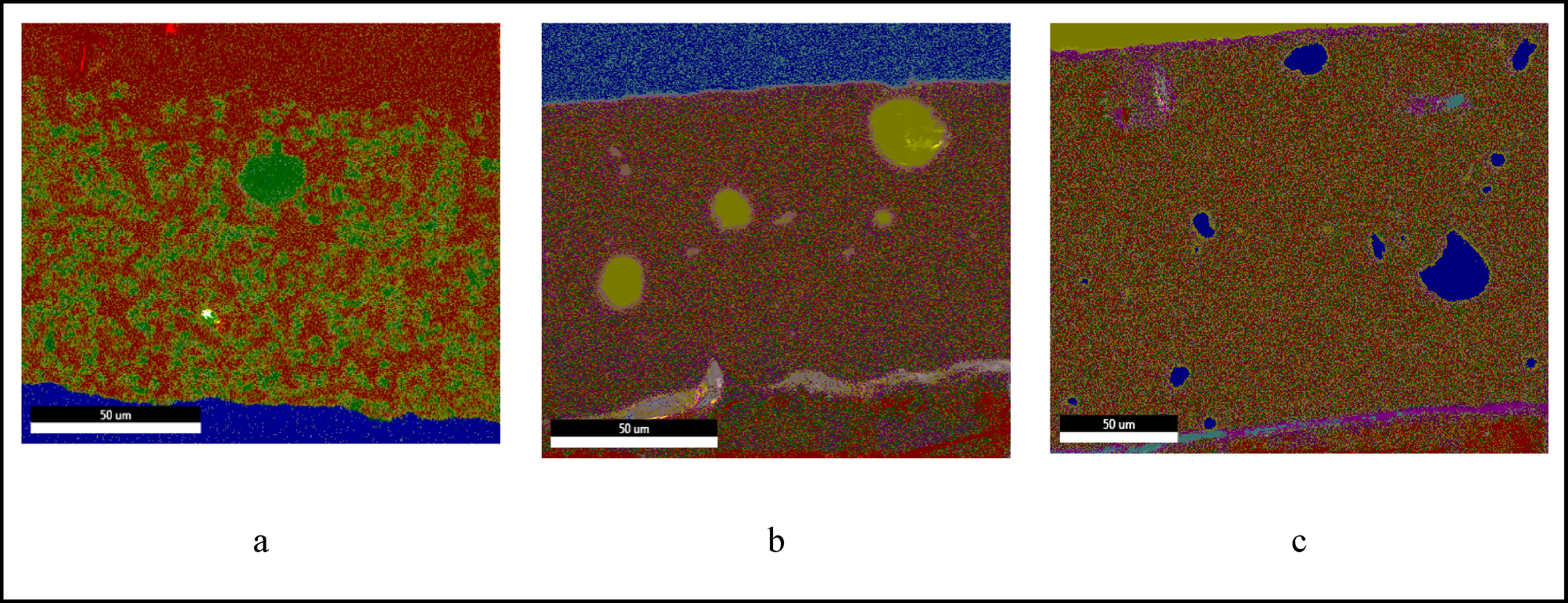

EDS microscopy images and elemental mapping of epoxy powder coatings: (a) PLY, (b) PLY/MMT, and (c) PLY/MMT/ADA. Quantitative elemental compositions corresponding to these mappings are summarized in Table 6.
