Fig. 7

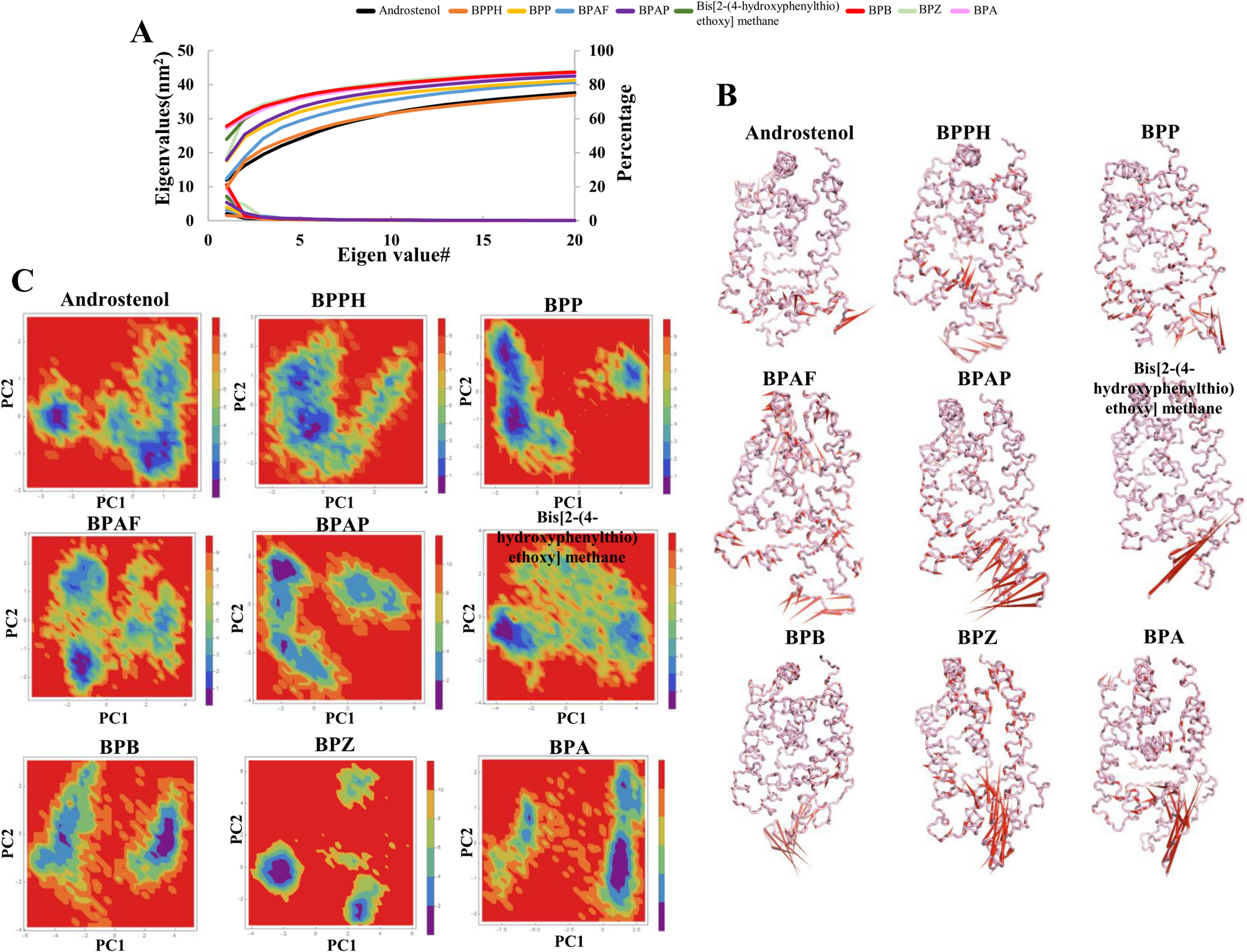

Principal components and free energy landscape (FEL) analyses. (A) The first 20 eigenvalues were plotted along with cumulative variance. (B) Conformational changes were visualized using porcupine plots. The large magnitude observed for the AF-2 helix and long loop between helix2 and 3. (C) FELs were plotted for PC1 and PC2.
