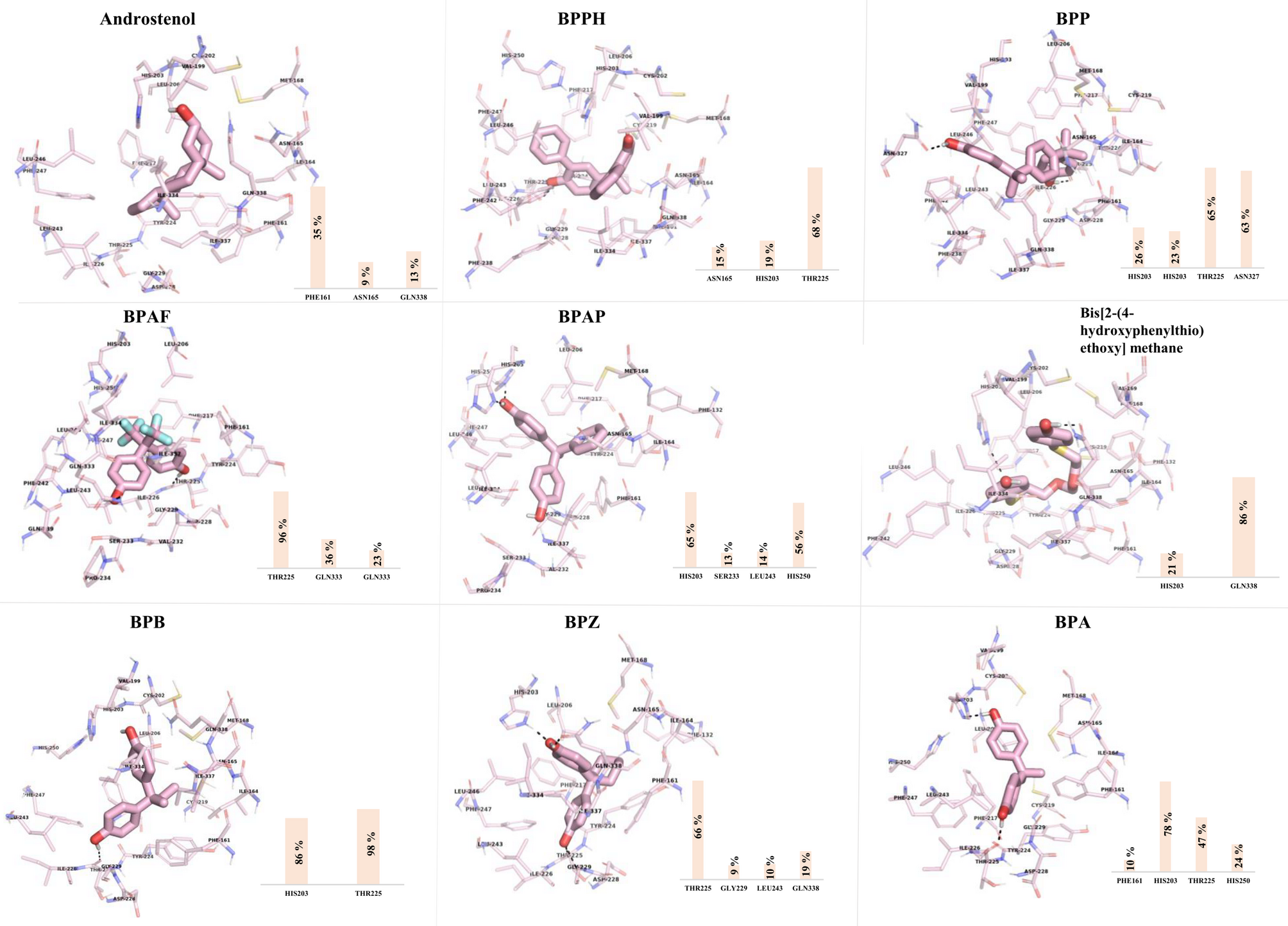

Fig. 8
Binding pocket residues of CAR-LBD. Residues located within 4Å of the ligands in the binding pocket of CAR-LBD were shown along with the hydrogen bond occupancy for all simulated complexes. Two bars of His203 (BPP) and Gln333 (BPAF) indicates two hydrogen bonds with ligand.
