From: Development, performance evaluation and prediction of optimal operational conditions for a double-row sugarcane harvester using deep learning

Fig. 2

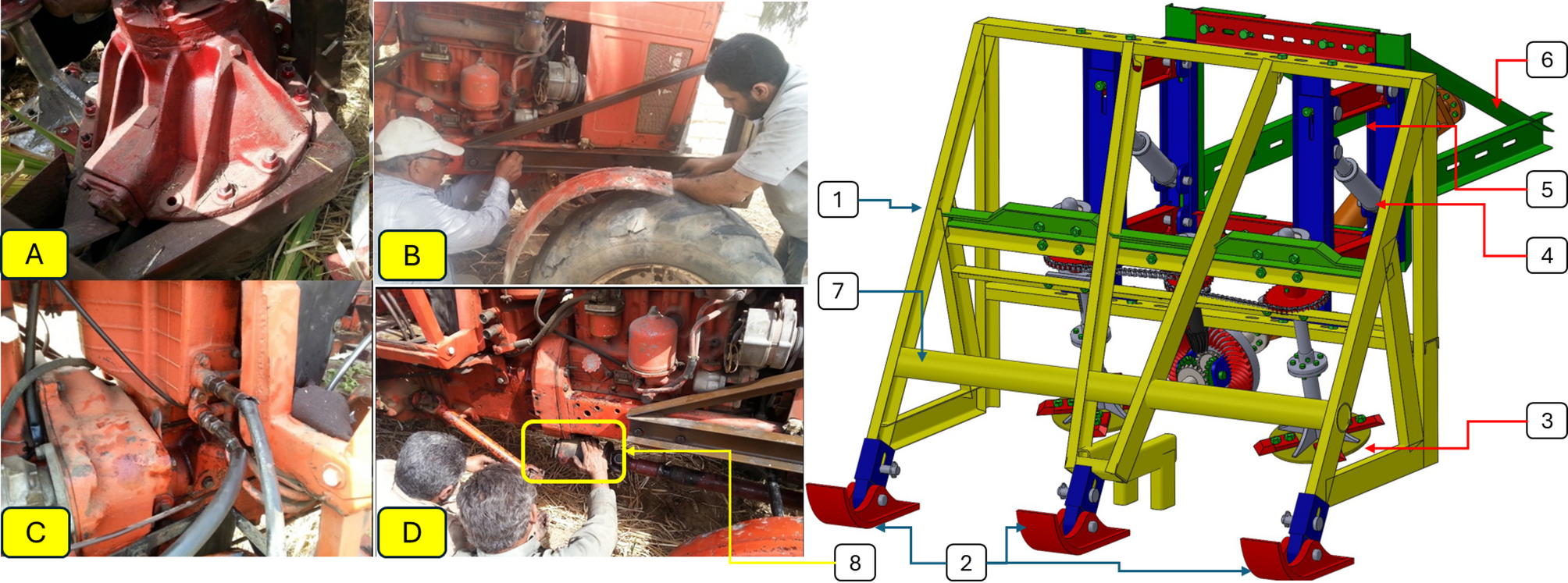

Main components of the developed tractor operator double-row sugarcane whole-stalk harvester (SWSH). Whereas (A) crown gearbox, (B) installing fixed frame on the front side of the tractor, (C) hydraulic system hoses, (D) connecting the power transmission shaft with the tractor front wheels operating shaft; (1) movable frame, (2) sliding shoes, (3) cutting system, (4) hydraulic pistons, (5) connecting rods, (6) fixed frame, (7) sugarcane stalk push arm, and (8) Power cultch.
