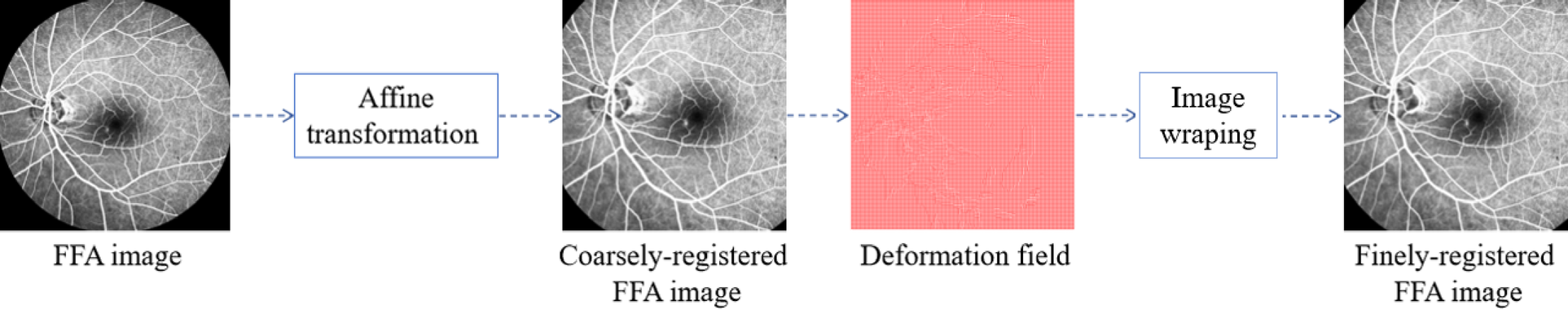

Fig. 7
From: A coarse-to-fine registration method for multimodal retinal images
The main process of fine registration: (1) Vessel structure extraction from the input images using a trained disentangled network; (2) Deformation field generation by processing the extracted structures through a trained deformable network; (3) Image warping by applying the computed deformation fields to achieve the finely-registered results.
