Fig. 4

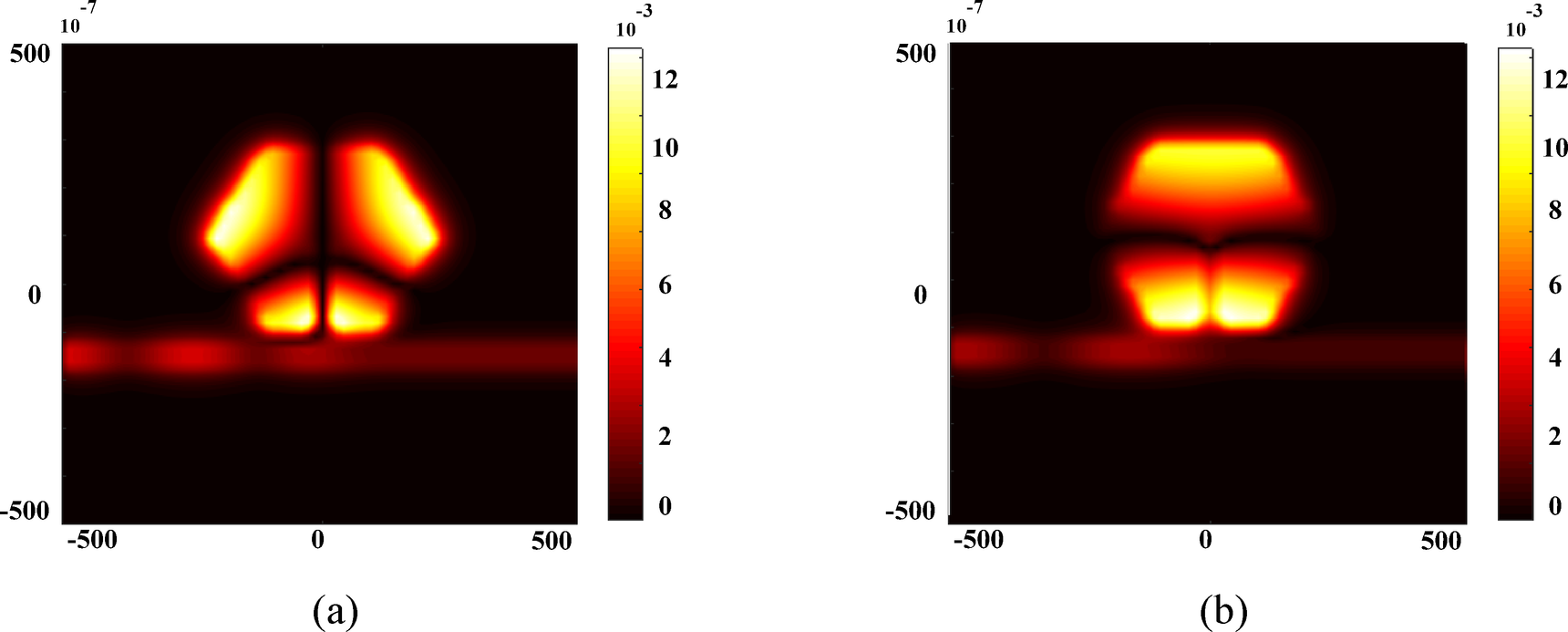

Magnetic field intensity profiles (∣H∣²) of the biosensor at wavelengths (a) 853 nm and (b) 1101 nm. The field distribution is plotted in the central xz-plane, and the colormap represents the normalized field intensity on a logarithmic scale.
