Fig. 8
From: Thermal behavior in compact-type cryogenic needle valve with integrated heat sinks

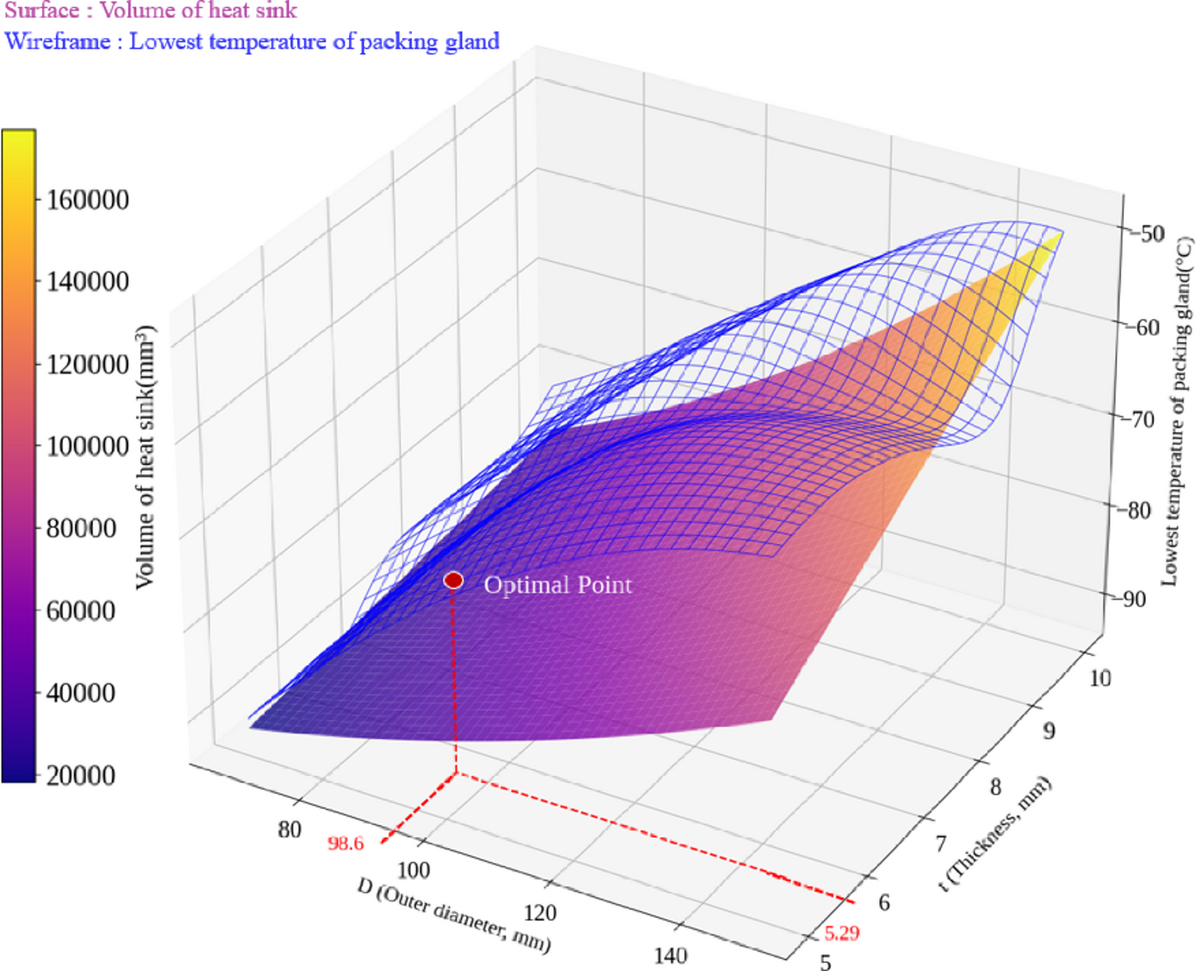

Results of design space exploration to find D and t regarding to volume of heat sink and lowest temperature of packing gland.
Fig. 8 | Scientific Reports
From: Thermal behavior in compact-type cryogenic needle valve with integrated heat sinks
Results of design space exploration to find D and t regarding to volume of heat sink and lowest temperature of packing gland.
