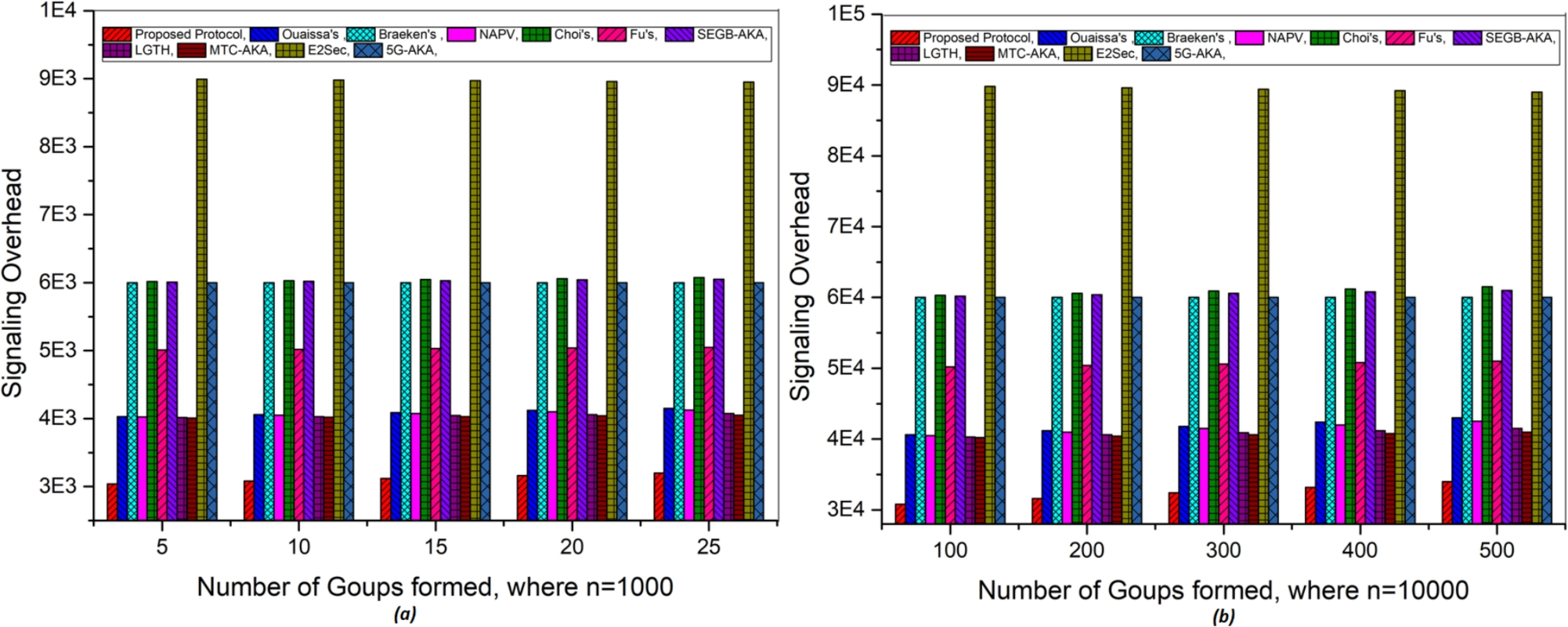

Fig. 9

An assessment of the signaling overhead of the proposed protocol in comparison to several contemporary group AKA protocols found in the existing literature, n is representing to the total IoVT devices and m is representing to the n number of groups.
