Fig. 8

From: Identification of potential biomarkers associated with mitochondrial oxidative stress in idiopathic pulmonary arterial hypertension via bioinformatic and experimental analysis

Fig. 8

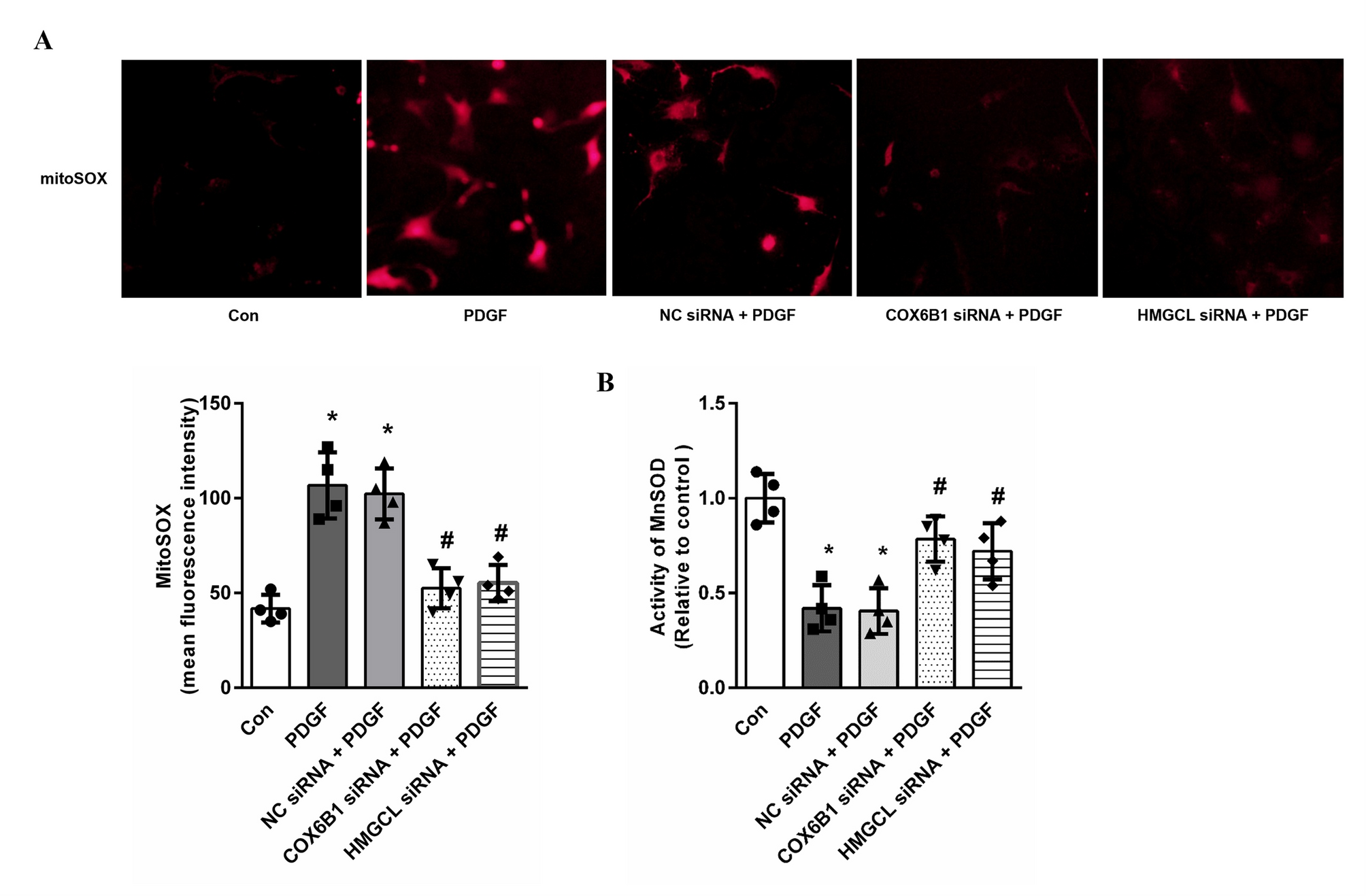

Knockdown of hub genes inhibits mitochondrial oxidative stress in PDGF-induced PASMCs. PASMCs were transfected with non-targeting siRNA or COX6B1 and HMGCL siRNA for 24 h before PDGF stimulation (10 ng/ml) for 24 h, mitoSOX level and activity of MnSOD were examined. (A) Representative images of MitoSOX fluorescence and MitoSOX mean fluorescence intensity are shown (n = 4 per group). *P < 0.05 versus control group, #P < 0.05 versus PDGF-treated cells. (B) The activity of MnSOD are shown (n = 4 per group). *P < 0.05 versus control group, #P < 0.05 versus PDGF-treated cells.
